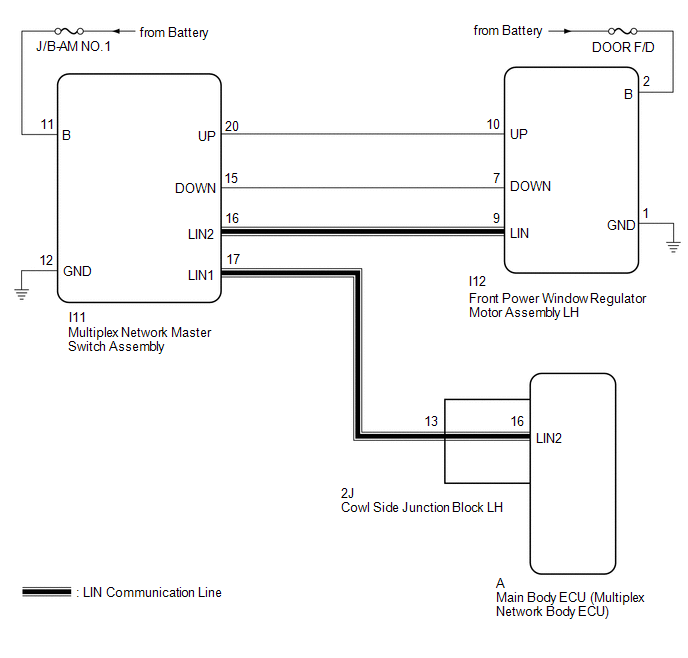

Driver Side Power Window does not Operate with Power Window Master Switch [08/2015 - ]: Wiring Diagram

GTY585496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
