Installation [08/2015 - ]: Procedure

INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUBASSEMBLY (w/ Camera Heater)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

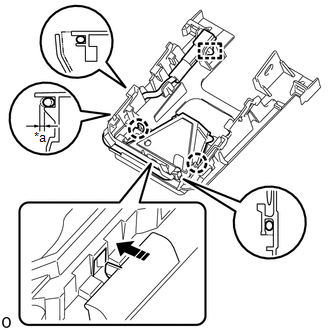

*a	Permitable protrusion for wire harness
	Install in this Direction

Attach the guide and claw.

Install the wire harness to forward recognition bracket as shown in the illustration.
Attach the connector clamp to install the forward recognition with heater hood subassembly.

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FORWARD RECOGNITION CAMERA

When using a new forward recognition camera:

Remove the protective film.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the camera lens after removing the protective film.

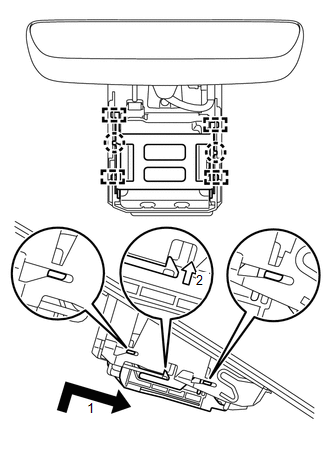

Attach the 4 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the camera lens.

INSTALL FORWARD RECOGNITION LATCH

NOTE:

Before installing the forward recognition latch, make sure that the forward recognition camera is securely installed to the vehicle.

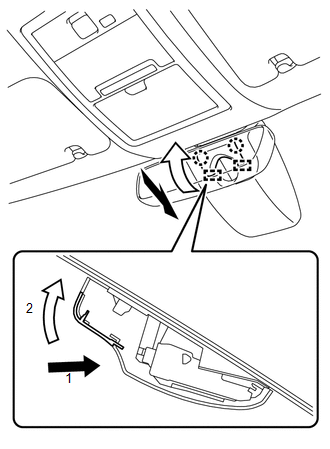

Attach the 4 guides and 2 claws to install the forward recognition latch as shown in the illustration.

INSTALL NO. 1 FORWARD RECOGNITION COVER

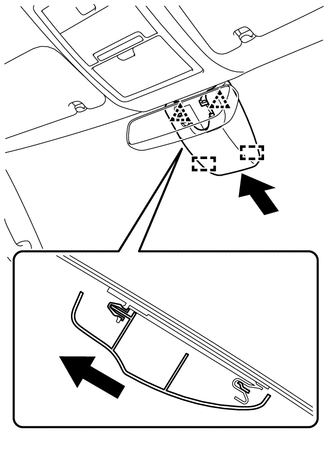

Attach the 2 clips and 2 guides to install the No. 1 forward recognition cover as shown in the illustration.

INSTALL NO. 2 FORWARD RECOGNITION COVER

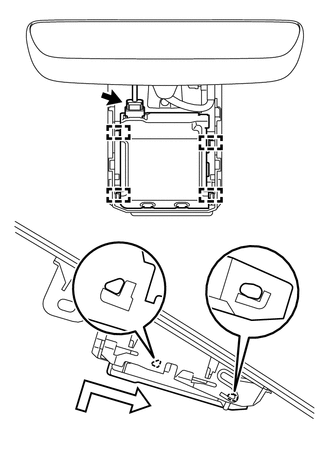

Attach the 2 guides and 2 claws to install the No. 2 forward recognition cover as shown in the illustration.

ADJUST FORWARD RECOGNITION CAMERA
1. If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Recognition Camera/Target Position Memory and Recognition Camera Axis Adjust.
  (Refer to ADJUSTMENT [08/2015 - ] )
