Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] Refer to INITIALIZATION [08/2017 - ] ).

  3. REMOVE STEERING PAD

    (Refer to REMOVAL [08/2015 - ] )

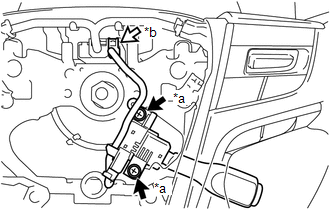

  4. REMOVE CRUISE CONTROL MAIN SWITCH
    1. Disconnect the connector.
      GTY568440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Screw
      *b Connector
    2. Remove the 2 screws.
    3. Disconnect the connector and remove the cruise control main switch wire.
      GTY574691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
