Removal [06/2018 - 01/2019]: Procedure

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
for CVT: Refer to PROCEDURE - Step 1

for Manual Transaxle: Refer to PROCEDURE - Step 6
REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 3
REMOVE FRONT CONSOLE UPPER PANEL GARNISH
Refer to PROCEDURE - Step 5
REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for CVT)
Refer to PROCEDURE - Step 9
REMOVE UPPER FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transaxle)
Refer to PROCEDURE - Step 8

REMOVE VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)

for CVT:

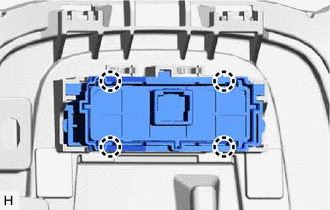

Disengage the 4 claws to remove the VSC OFF switch (combination switch assembly) from the position indicator housing assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Manual Transaxle:

Disengage the 4 claws to remove the VSC OFF switch (combination switch assembly) from the upper front console panel sub-assembly.
