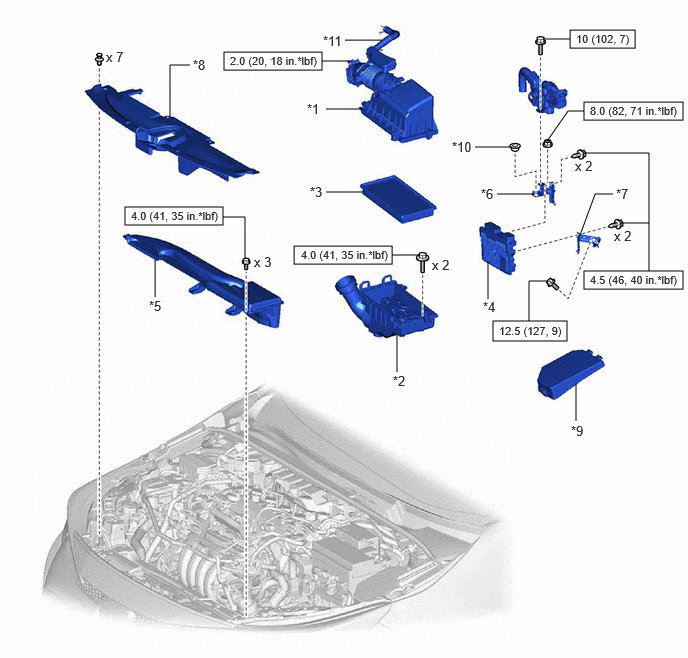

Components [11/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | ECM |
| *5 | INLET NO. 1 AIR CLEANER | *6 | NO. 1 ECM BRACKET |
| *7 | NO. 2 ECM BRACKET | *8 | RADIATOR SUPPORT OPENING COVER |
| *9 | NO. 1 RELAY BLOCK COVER | *10 | GROMMET |
| *11 | NO. 2 VENTILATION HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
