Engine Control System (2ZR-FAE) - Service Information
>>
Mass Air Flow Meter
>>
Components [01/2019 - 11/2022]
Components [01/2019 - 11/2022]

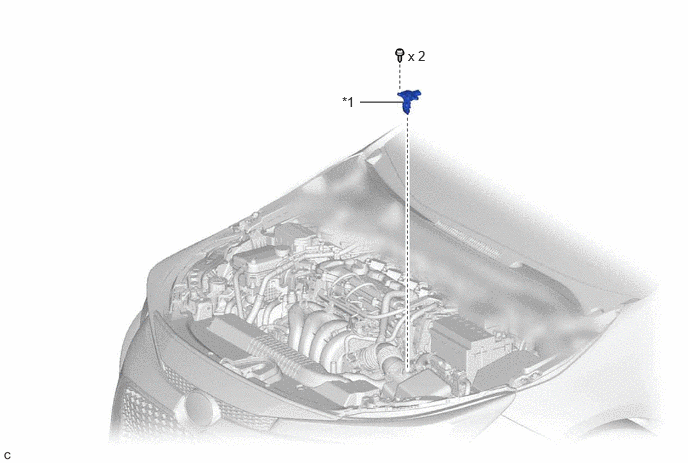

Fig 1: Mass Air Flow Meter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
MASS AIR FLOW METER SUB-ASSEMBLY
-
-
