Components [09/2022 - ]

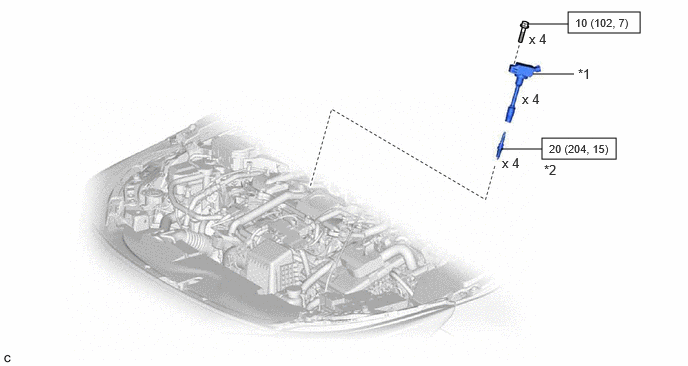

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [09/2022 - ]
GTY1104104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 SPARK PLUG
N.m (kgf/cm, ft.lbf): Specified torque - -
