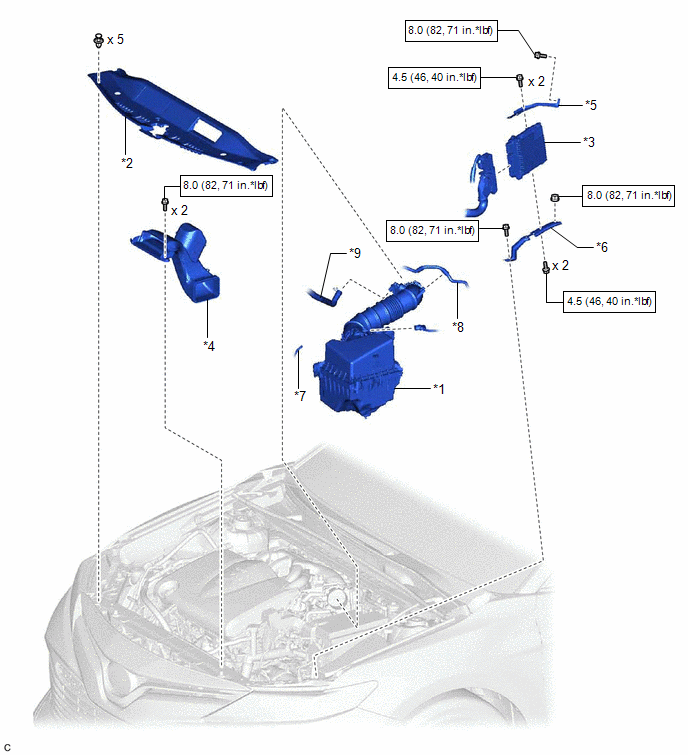

Components [06/2017 - ]
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | ECM | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | NO. 1 ECM BRACKET | *6 | NO. 2 ECM BRACKET |
| *7 | VACUUM HOSE | *8 | NO. 1 FUEL VAPOR FEED HOSE |
| *9 | NO. 2 VENTILATION HOSE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
