Installation [02/2017 - ]: Procedure

  1. INSTALL PRE-COLLISION CITY BUZZER

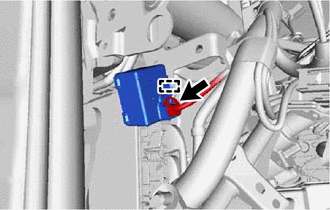

    1. Connect the connector.
      GTY744049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp to install the pre-collision city buzzer.
      NOTE:

      If the pre-collision city buzzer has been struck or dropped, replace it with a new one.

      HINT:

      Make sure to install the pre-collision city buzzer in the correct direction.

  2. INSTALL FUSE BOX OPENING COVER

    Refer to INSTALLATION [02/2017 - ]
