Removal [02/2017 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    See step  1

  2. REMOVE VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

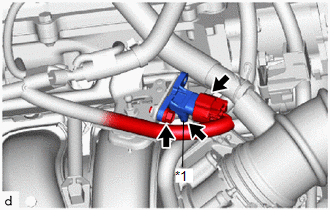

    1. Disconnect the vacuum hose and vacuum sensor assembly (manifold absolute pressure sensor) connector from the vacuum sensor assembly (manifold absolute pressure sensor).
      GTY759195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vacuum Hose
    2. Remove the bolt and vacuum sensor assembly (manifold absolute pressure sensor) from the vacuum sensor bracket.
