Removal [02/2017 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  2. REMOVE KNOCK SENSOR

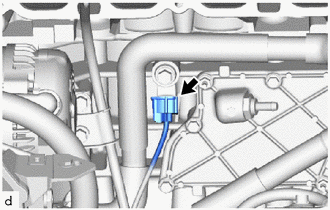

    1. Disconnect the knock sensor connector.
      GTY774413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

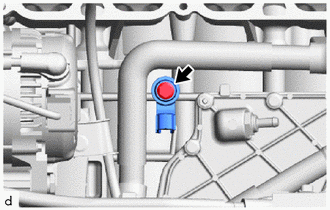

    2. Remove the bolt and knock sensor from the cylinder block sub-assembly.
      NOTE:

      If the knock sensor has been struck or dropped, replace it.

      GTY767264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
