Removal [02/2017 - ]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [02/2017 - 05/2018] , or refer to REMOVAL [05/2018 - ]

  2. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - STEP 1

  3. REMOVE ENGINE OIL TEMPERATURE SENSOR
    1. Disconnect the engine oil temperature sensor connector.
    2. Using SST, remove the engine oil temperature sensor from the timing chain cover sub-assembly.
      • SST: 09817-33191
      NOTE:

      If an engine oil temperature sensor has been struck or dropped, replace it.

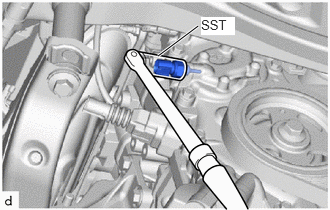

      GTY741677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine oil temperature sensor.
