Components [02/2017 - 09/2019]

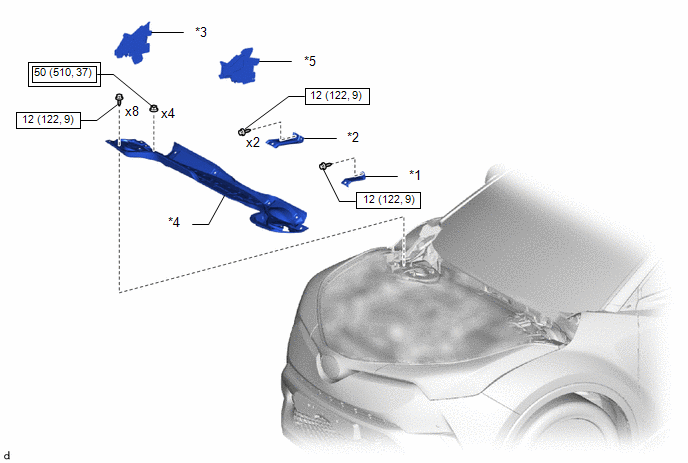

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 3)
GTY767474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COWL BODY MOUNTING REINFORCEMENT LH *2 COWL BODY MOUNTING REINFORCEMENT RH
*3 NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL *4 OUTER COWL TOP PANEL SUB-ASSEMBLY
*5 WATER GUARD PLATE LH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

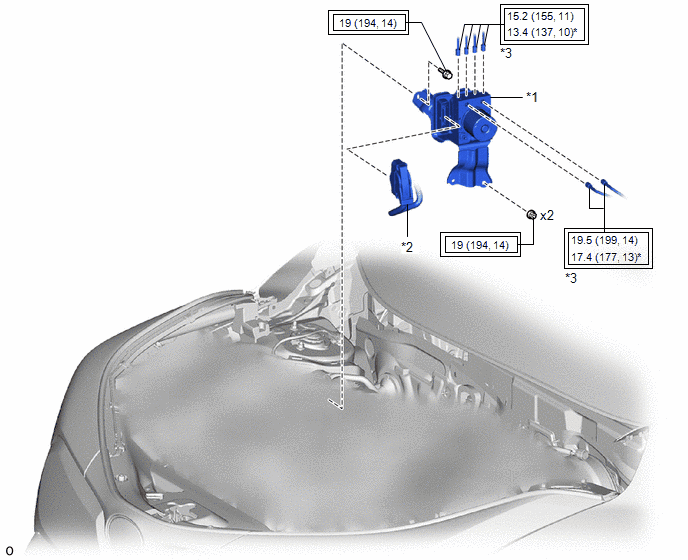

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 3)
GTY743704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE ACTUATOR WITH BRACKET *2 BRAKE ACTUATOR ASSEMBLY CONNECTOR
*3 BRAKE TUBE - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) * For use with a union nut wrench

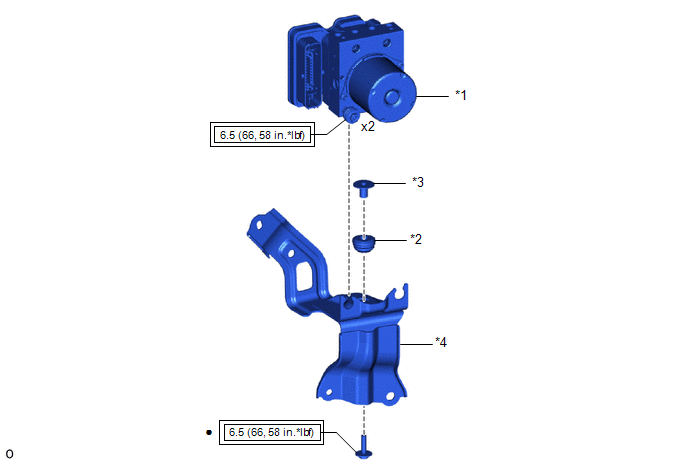

Fig 3: Brake Actuator Replacement Components With Torque Specifications (3 Of 3)
GTY767861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE ACTUATOR ASSEMBLY *2 BRAKE ACTUATOR BRACKET CUSHION
*3 NO. 1 BRAKE ACTUATOR CASE COLLAR *4 BRAKE ACTUATOR BRACKET ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
