Removal [08/2019 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [08/2019 - 08/2022] , or refer to REMOVAL [08/2022 - ]

  2. REMOVE PRE-COLLISION CITY BUZZER

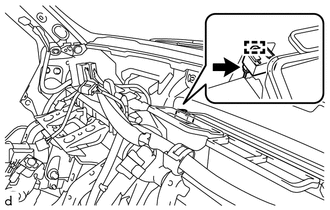

    1. Disengage the clamp.
      GTY919303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the pre-collision city buzzer.
      NOTE:

      If the pre-collision city buzzer has been struck or dropped, replace it with a new one.
