Removal [03/2019 - ]: Procedure

  1. REMOVE ACCELERATION SENSOR ASSEMBLY

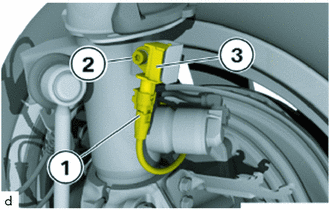

    1. Unlock plug connection (1) and disconnect.
      GTY926678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen E10 bolt (2).
    3. Remove the acceleration sensor assembly (3).
