Removal [03/2019 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)

    HINT:

    Use the same procedure as for the driver side.

    Refer to REMOVAL [03/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]

  2. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)

    HINT:

    Use the same procedure as for the driver side.

    Refer to REMOVAL [03/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]

  3. REMOVE BELT WARNING OCCUPANT DETECTION SENSOR

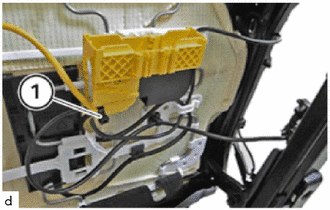

    1. Remove the tie band (1).
      GTY839017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

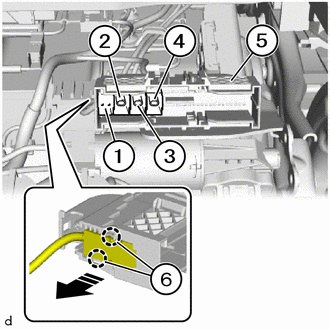

    2. Detach the claws (6) to remove the connectors in order from (1) to (4) from the connector housing (5) in the direction of the arrow.
      GTY904316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Detach the claws (2) and clamp (3).
      GTY925705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the cable (4) from the holder (5).
    5. Remove the belt warning occupant detection sensor (1) from the front seat assembly carefully.
