Installation [03/2019 - ]: Procedure

  1. INSTALL BELT WARNING OCCUPANT DETECTION SENSOR
    1. Install the belt warning occupant detection sensor (1) to the front seat assembly carefully.

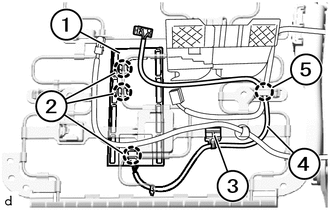

      GTY925705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the cable (4) to the holder (5).
    3. Attach the claws (2) and clamp (3).
    4. Attach the claws (6) correctly to install the connectors to the connector housing (5) in order of (4) to (1) in the direction of the arrow.

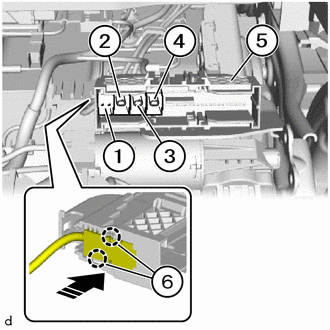

      GTY909825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Fasten the tie band.
  2. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

    HINT:

    Use the same procedure as for the driver side.

    Refer to INSTALLATION [03/2019 - 07/2020] , or refer to INSTALLATION [07/2020 - ]

  3. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)

    HINT:

    Use the same procedure as for the driver side.

    Refer to INSTALLATION [03/2019 - 07/2020] , or refer to INSTALLATION [07/2020 - ]
