DTC U0315-00: Software Incompatibility with Anti-Lock Brake System Control Module [08/2018 - ]: Wiring Diagram

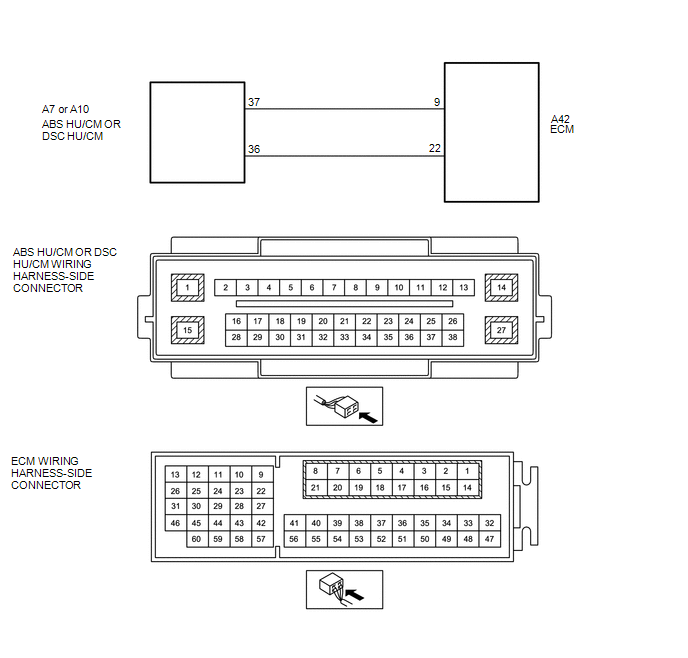

200 Pin Type

GTY492700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

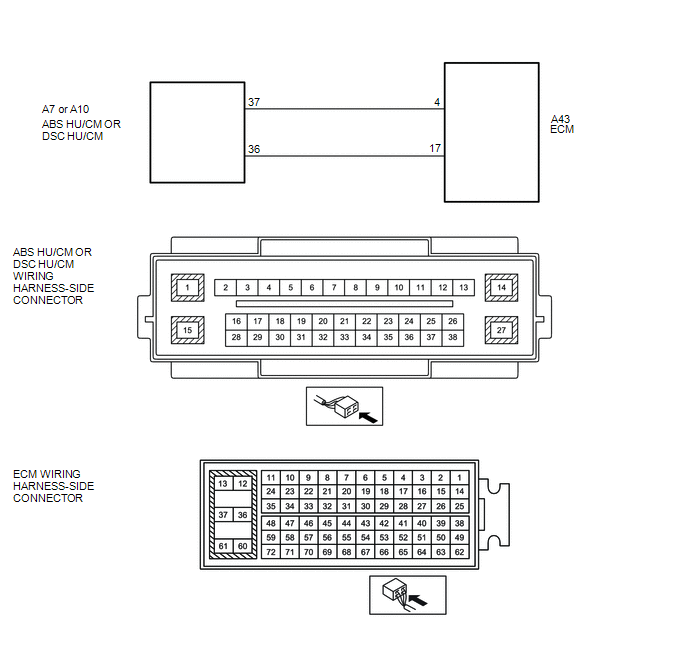

186 Pin Type

GTY856975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
