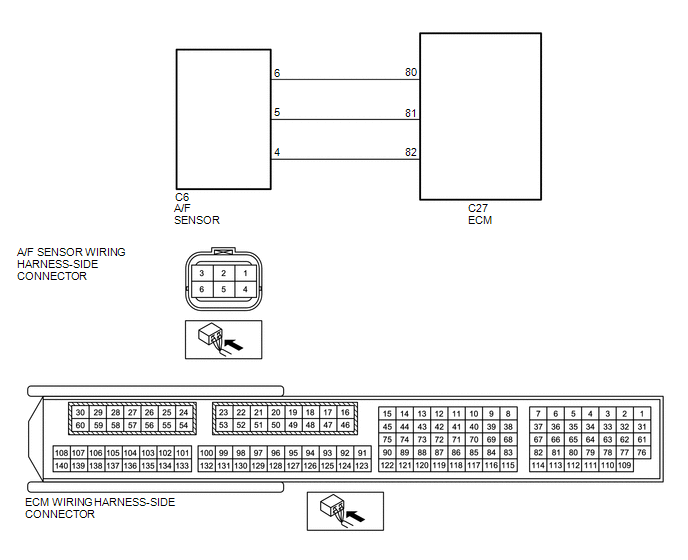

DTC P2237-00: O2 Sensor Positive Current Control Circuit/Open - Bank 1, Sensor 1 [07/2015 - 08/2018]: Wiring Diagram

GTY483136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
