Inspection [08/2015 - 09/2019]: Procedure

  1. INSPECT VSC OFF SWITCH
    1. Check the resistance.
      1. Measure the resistance according to the value(s) in the table below.

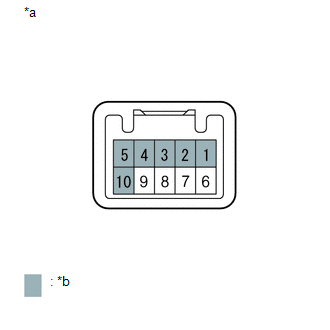

        GTY556049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Component without harness connected
        (VSC Off Switch)
        *b No Pin

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        6 - 9 Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the value is not as specified, replace the VSC off switch.
