Components [11/2018 - ]

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
*3	DECK BOARD ASSEMBLY	*4	REAR NO. 2 FLOOR BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

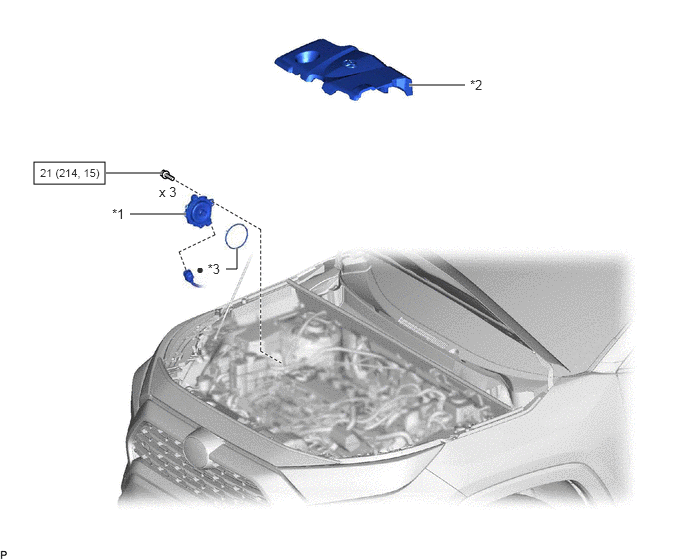

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	CAM TIMING CONTROL MOTOR O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
