Inspection [04/2018 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT ABSORBER CONTROL SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

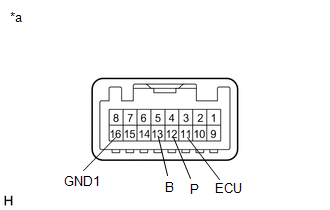

      GTY870736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Absorber Control Switch (Electric Parking Brake Switch Assembly))

      Standard Resistance

      Tester Connection Condition Specified Condition
      13 (B) - 16 (GND1) NORMAL/CUSTOM mode switch being pushed and held Below 1 Ω
      NORMAL/CUSTOM mode switch not pushed 10 kΩ or higher
      12 (P) - 16 (GND1) SPORT S/S+ mode switch being pushed and held Below 1 Ω
      SPORT S/S+ mode switch not pushed 10 kΩ or higher
      11 (ECU) - 16 (GND1) ECO mode switch being pushed and held Below 1 Ω
      ECO mode switch not pushed 10 kΩ or higher
      1. If the result is not as specified, replace the absorber control switch (electric parking brake switch assembly).
