Home >> Toyota >> 2018 >> Tacoma TRD Pro, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System (Service Information) >> Multi-Terrain Select Switch >> Removal [08/2015 - ] >> Procedure

Removal [08/2015 - ]: Procedure

  1. REMOVE MULTI-TERRAIN SELECT SWITCH (DRIVE MONITOR SWITCH)

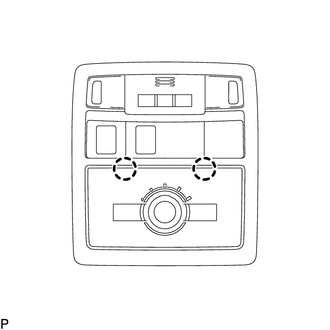

    1. Disengage the 2 claws to remove the multi-terrain select switch (drive monitor switch).
      GTY713677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
