Anti-Lock Brake System - Diagnostics - Introduction
>>
Anti-Lock Brake System
>>
System Diagram
>>
System Diagram
System Diagram

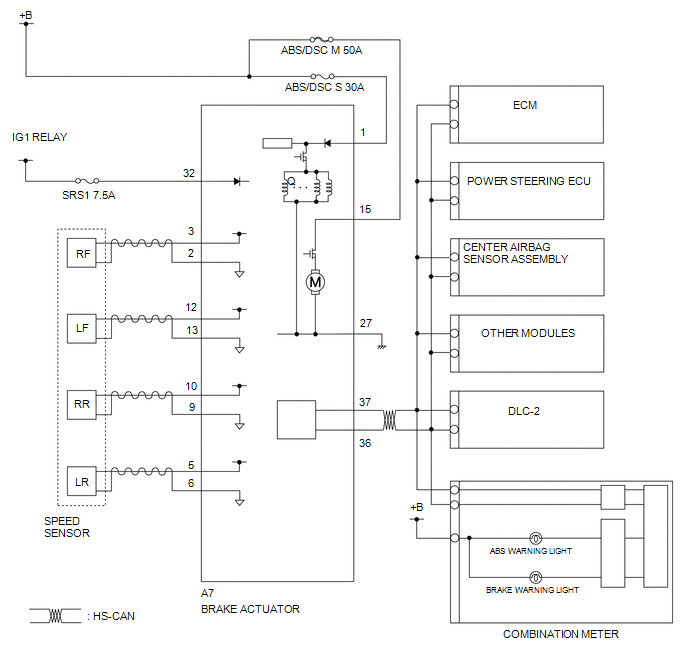

SYSTEM WIRING DIAGRAM [BRAKE ACTUATOR]
Fig 1: Brake Actuator System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
