2017
>>
Yaris iA Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System - Diagnostic Codes
>>
Power Window Control System
>>
DTC C0023-14: Stop Lamp Control Circuit Short To Ground Or Open
>>
Wiring Diagram

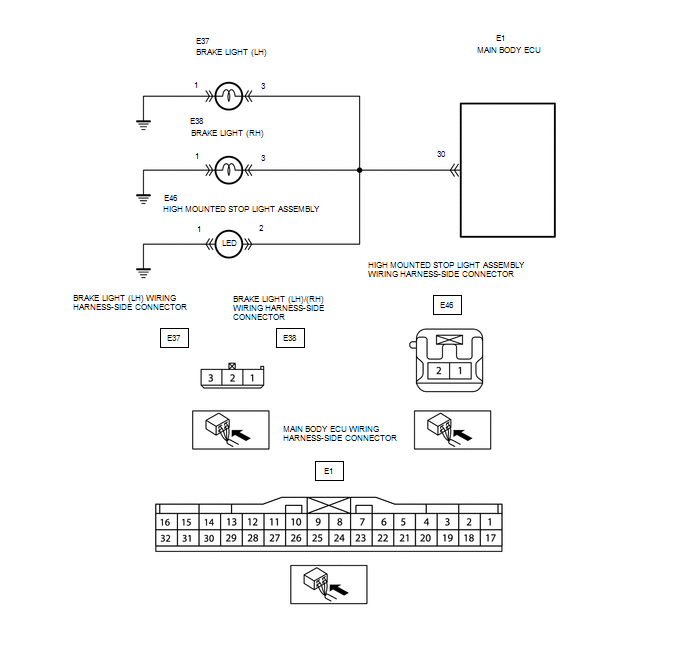

DTC C0023-14: Stop Lamp Control Circuit Short To Ground Or Open: Wiring Diagram
Fig 1: Stop Lamp Control Wiring Diagram With Connector End Views
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
