System Diagram

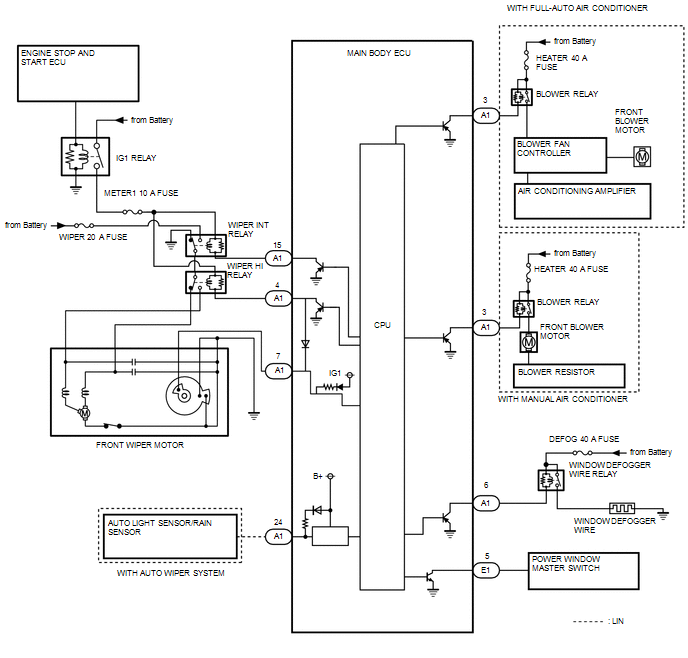

Windshield wiper, rear window defogger, front blower motor, power window

Fig 1: Windshield Wiper, Rear Window Defogger, Front Blower Motor And Power Window System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

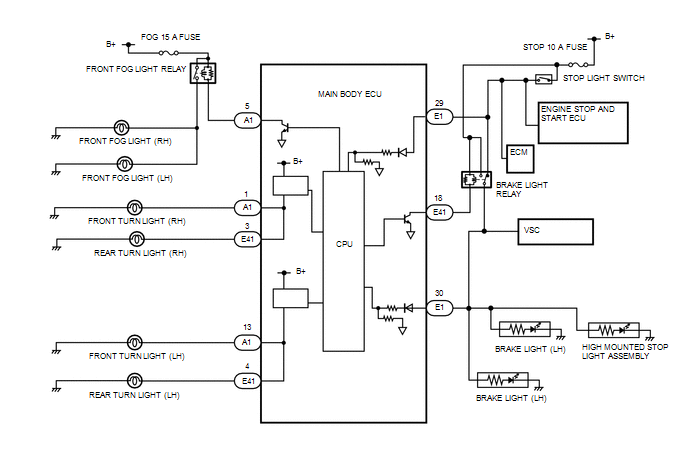

Turn light, brake light

Fig 2: Turn Light And Brake Light System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

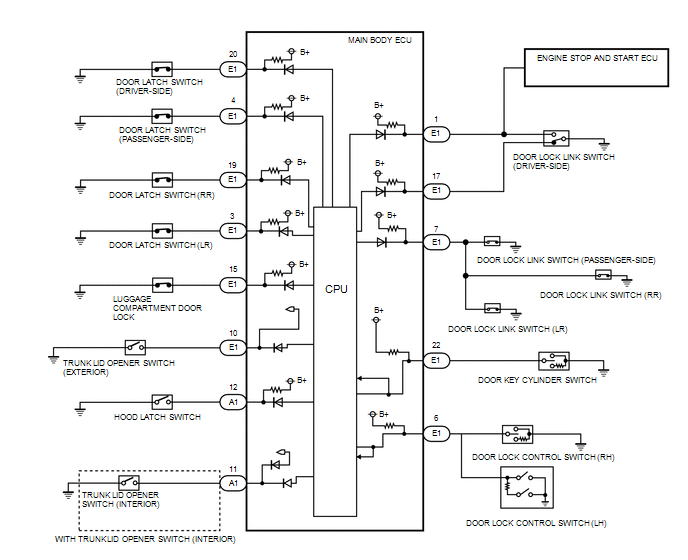

Door lock, trunk lid opener

Fig 3: Door Lock And Trunk Lid Opener System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

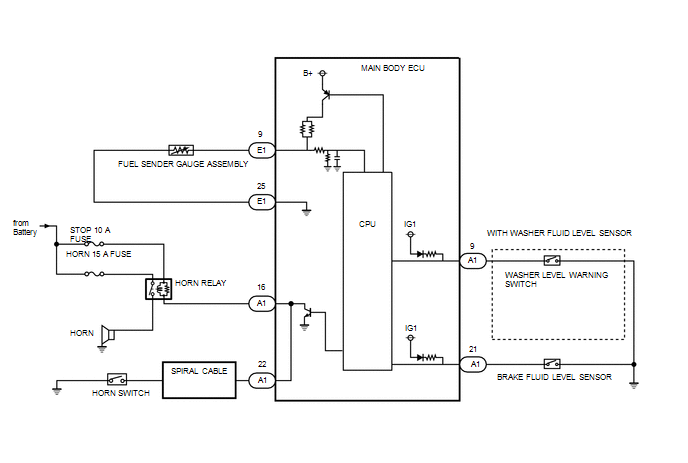

Fuel sender gauge assembly, horn, brake fluid level sensor, current sensor, washer level warning switch

Fig 4: Fuel Sender Gauge Assembly, Horn, Brake Fluid Level Sensor, Current Sensor And Washer Level Warning Switch System Diagram

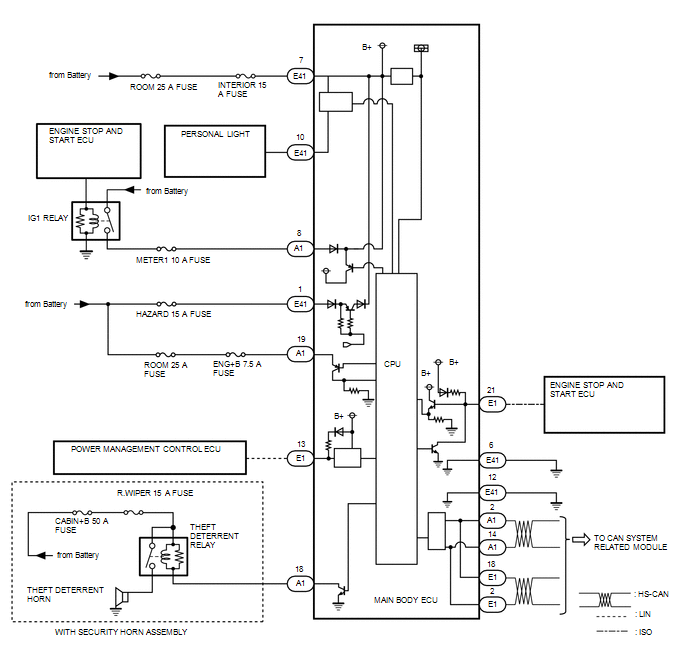

Power supply, LIN communication, ISO communication, CAN system, security horn assembly

Fig 5: Power Supply, LIN Communication, ISO Communication, CAN System And Security Horn Assembly System Diagram

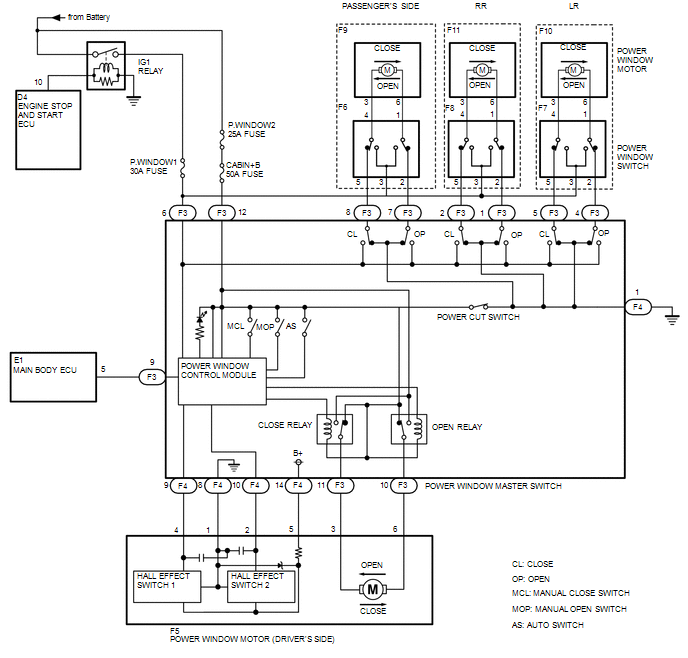

Power window control system

Fig 6: Power Window Control System Diagram
