Buckle Switch: Inspection: Procedure

  1. INSPECT BUCKLE SWITCH
    1. Switch the ignition off.
    2. Disconnect the negative battery cable and wait for 1 min or more.

      Refer to PROCEDURE - Step 1

    3. Remove the front seat.

      Refer to PROCEDURE - Step 1

    4. Remove the front buckle.

      See step  1

    5. Inspect for continuity between the buckle switch terminals using a tester.
      • If not as indicated in the table, replace the front buckle.

        See step  1

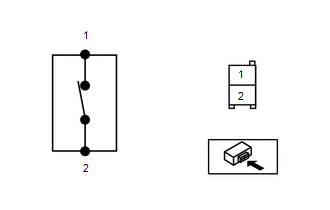

      GTY486291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

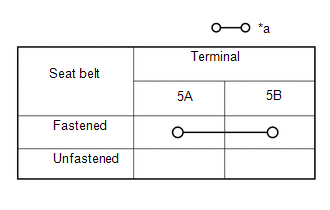

      GTY486732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Continuity
