REAR SPEED SENSOR (Vehicle Stability Control): Installation: Procedure

  1. INSTALL REAR SPEED SENSOR
    1. Install the bolt.

      Torque: 9 N*m (92 kgf*cm, 80 in.*lbf)

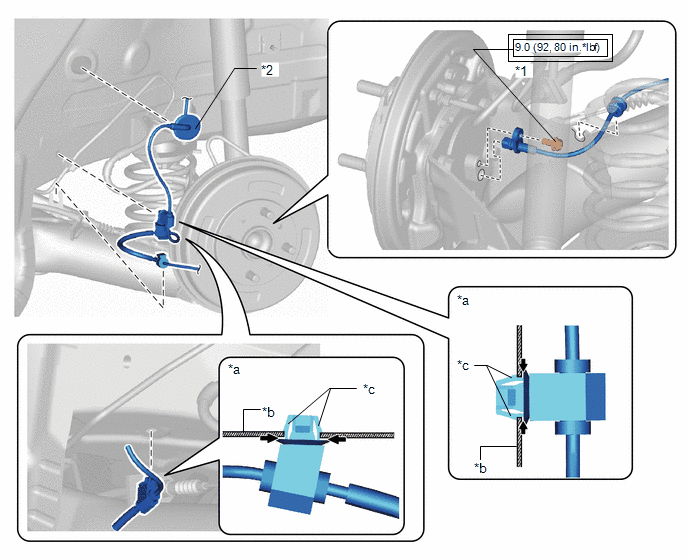

      GTY492240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt *2 Rear Speed Sensor
      *a Install Clip While Pressing Arrow Indication *b Body
      *c Clip - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    2. Install the clip.
    3. Press the rear speed sensor tab and press in the sensor toward the inside of the vehicle.
    4. Install the clip.

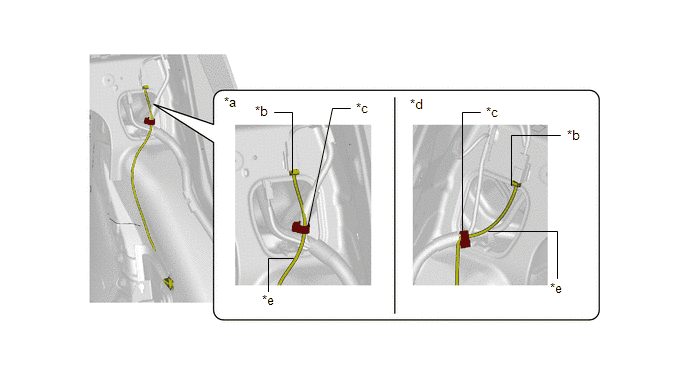

      GTY491845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH *b Connector
      *c Clip *d RH
      *e Rear Speed Sensor Wiring Harness - -
    5. Install the connector.
    6. Install the following parts:
      1. Tire house trim

        Refer to INSTALLATION

      2. Rear seat cushion

        Refer to INSTALLATION

      3. Rear scuff plate

        Refer to INSTALLATION
