Power Window Control System - Diagnostic Codes
>>
Power Window Control System
>>
DTC U0142-68: Lost Communication With Body Control Module "B" Event Information
>>
Wiring Diagram
DTC U0142-68: Lost Communication With Body Control Module "B" Event Information: Wiring Diagram

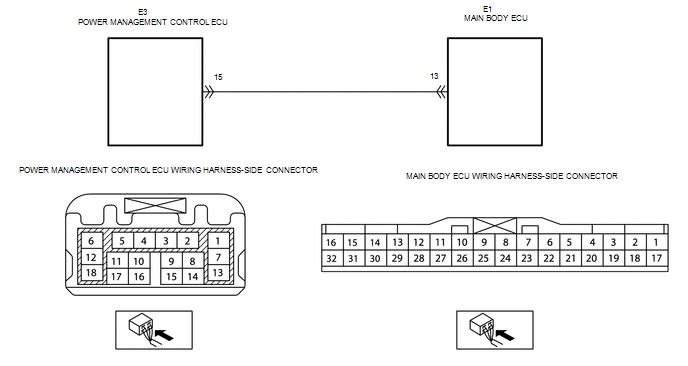

Fig 1: Body Control Module Wiring Diagram With Connector End Views
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
