DTC B1D07-13: Right Turn Indicator Circuit Open: Wiring Diagram

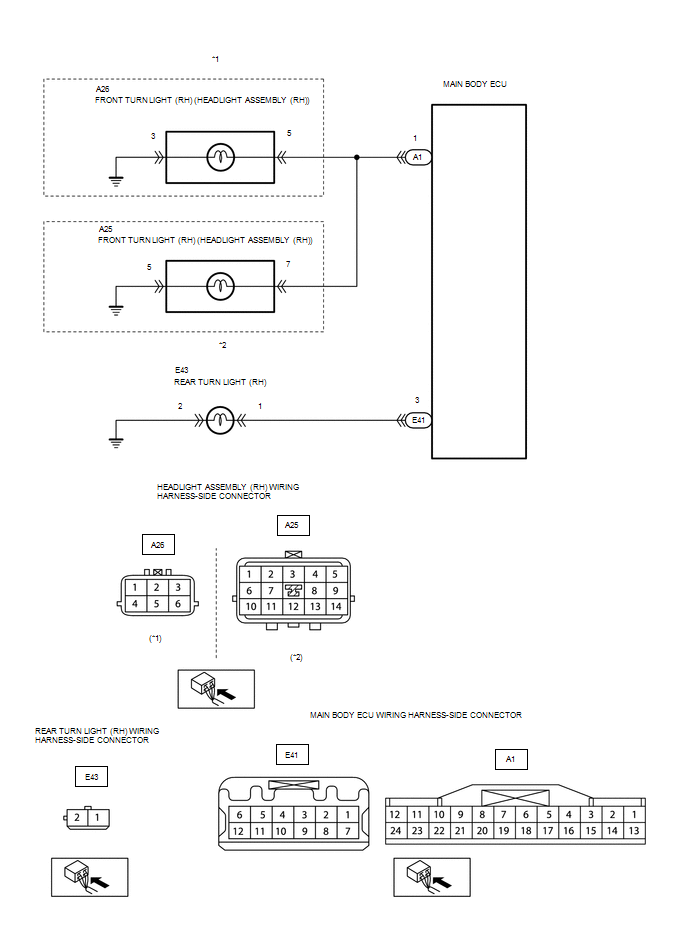

Fig 1: Right Turn Indicator Wiring Diagram With Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1 : With headlight assembly (bulb type)

*2 : With headlight assembly (LED type)
