System Diagrams

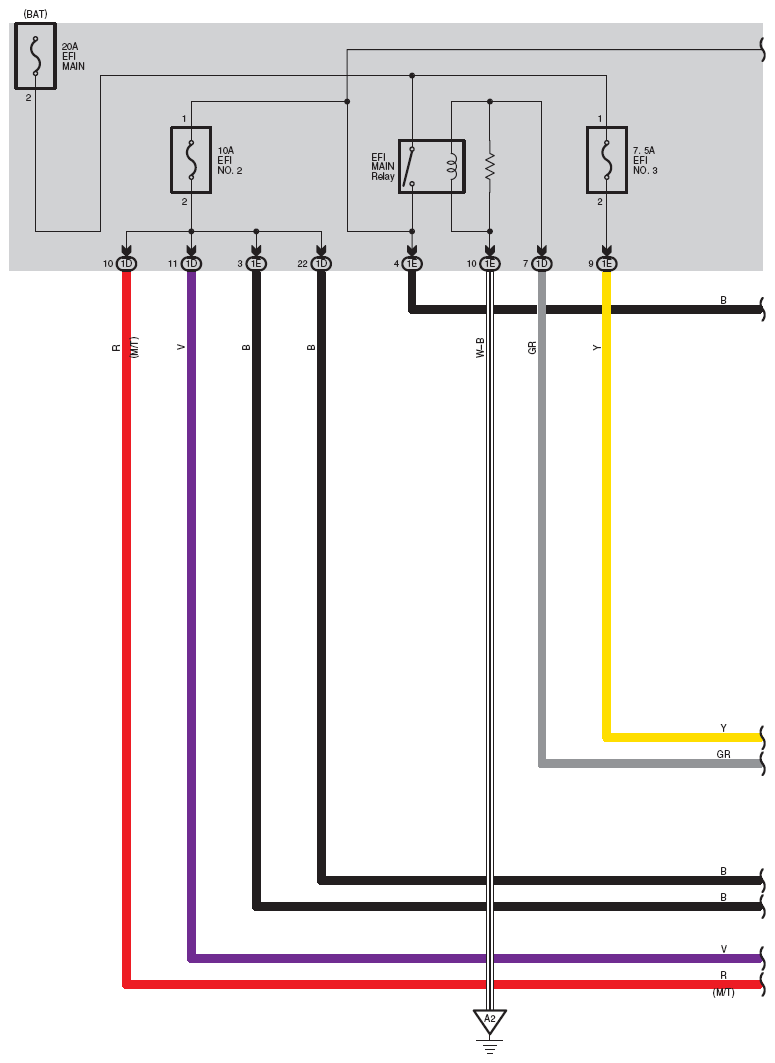

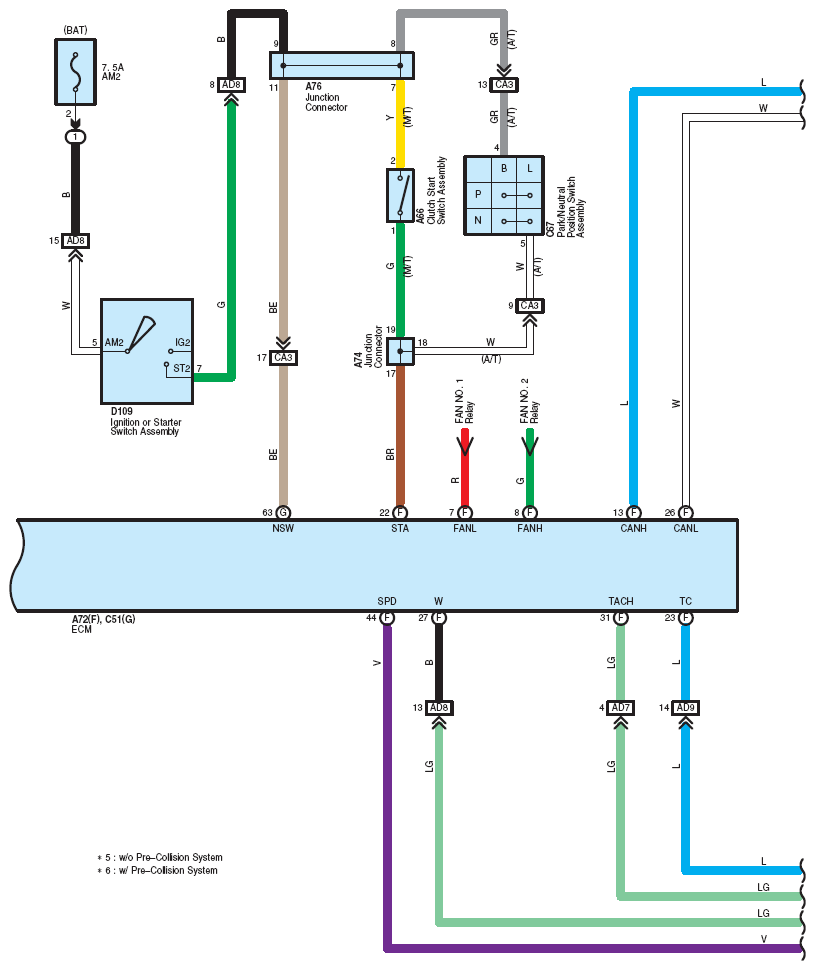

Fig 1: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (1 Of 12)

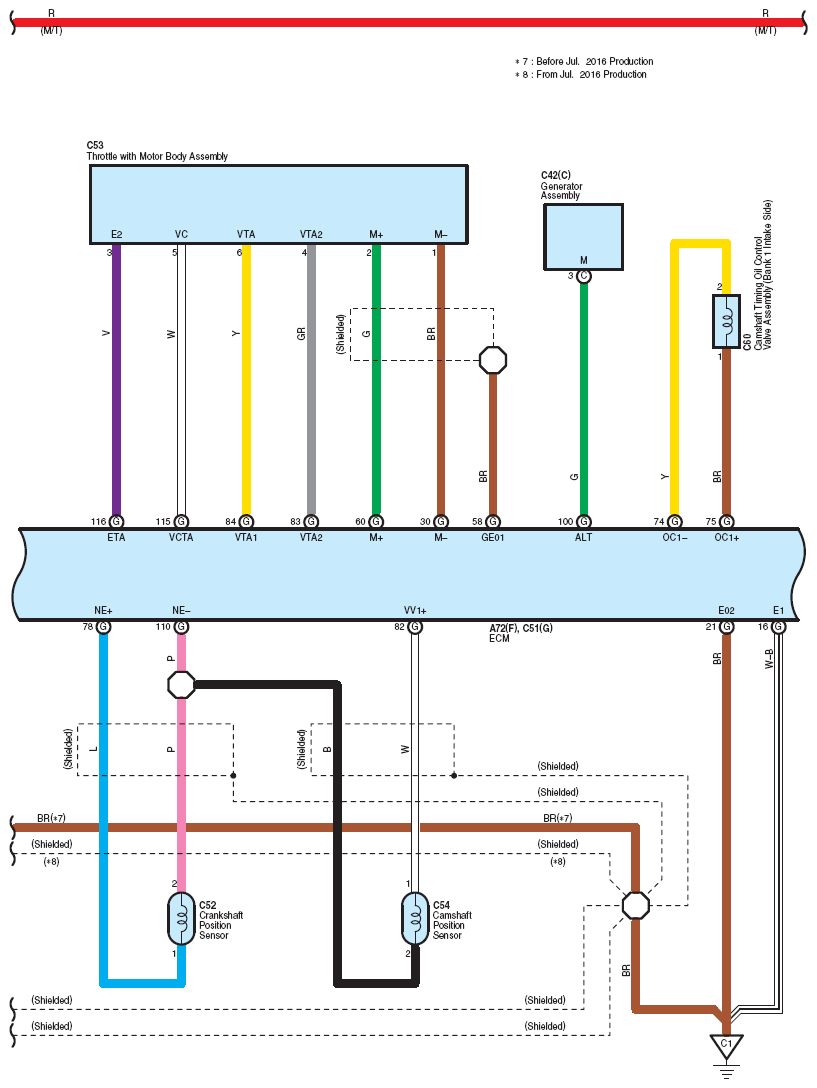

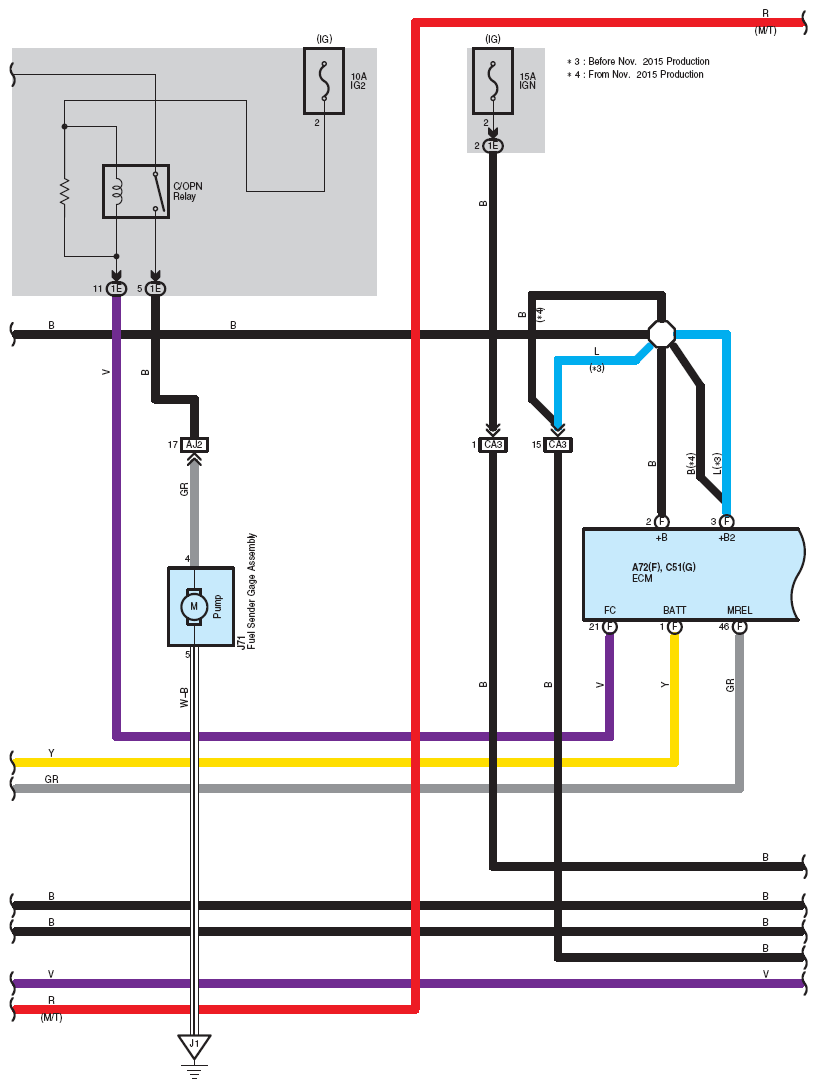

Fig 2: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (2 Of 12)

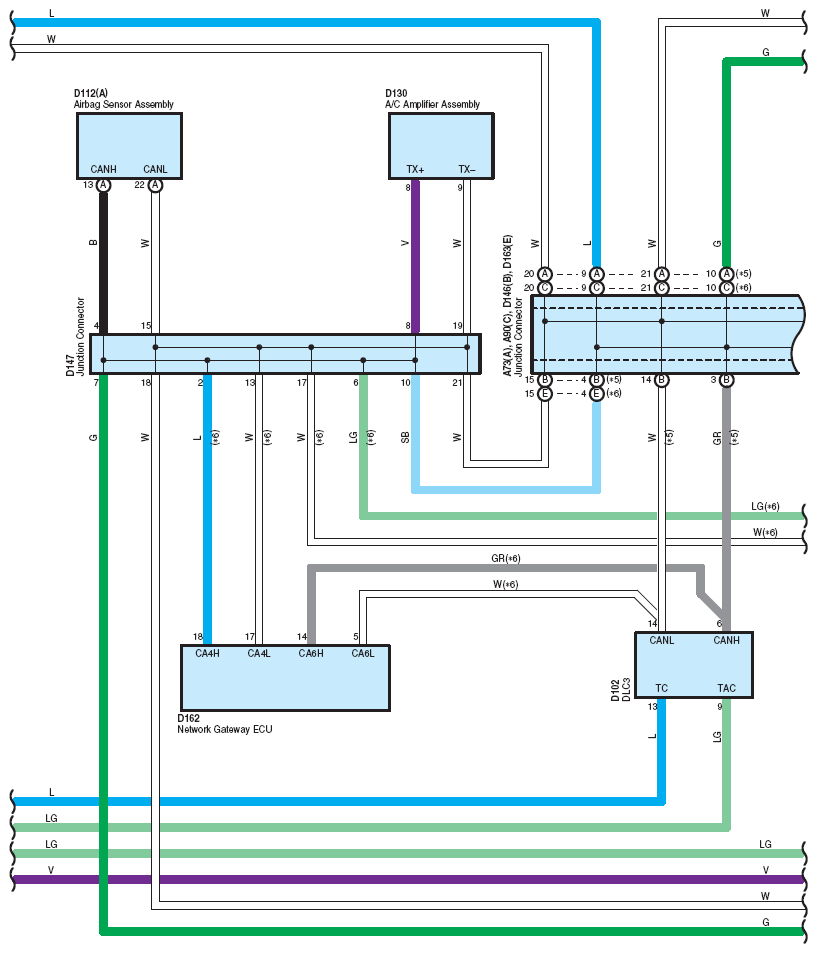

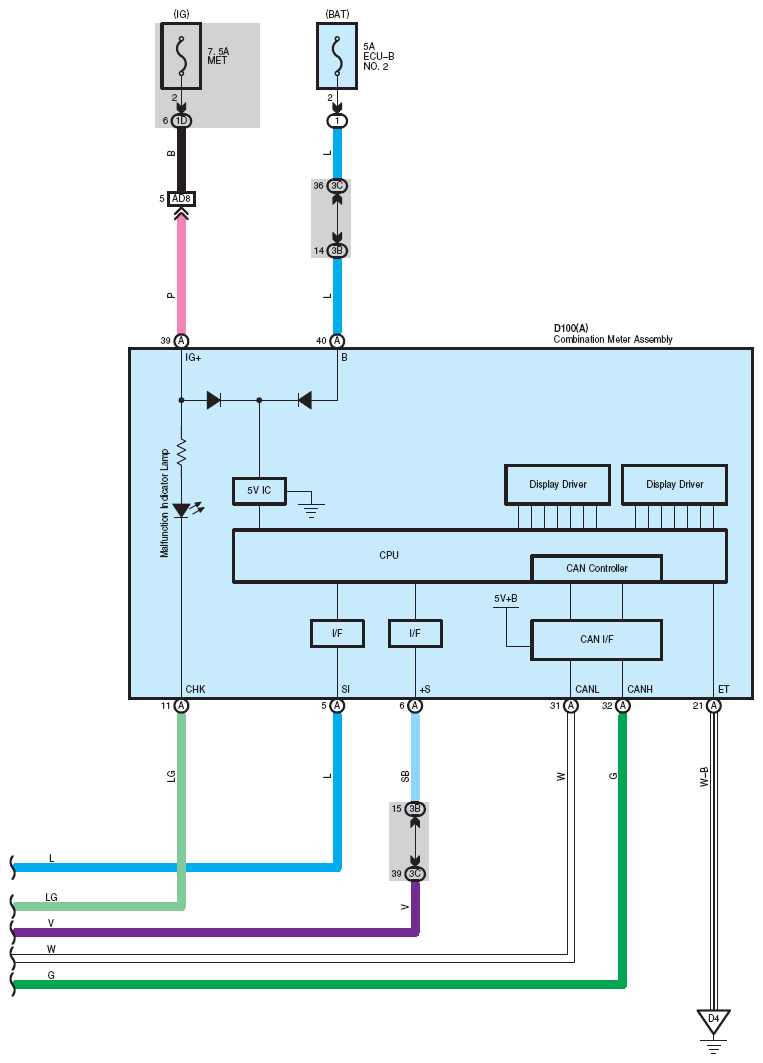

Fig 3: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (3 Of 12)

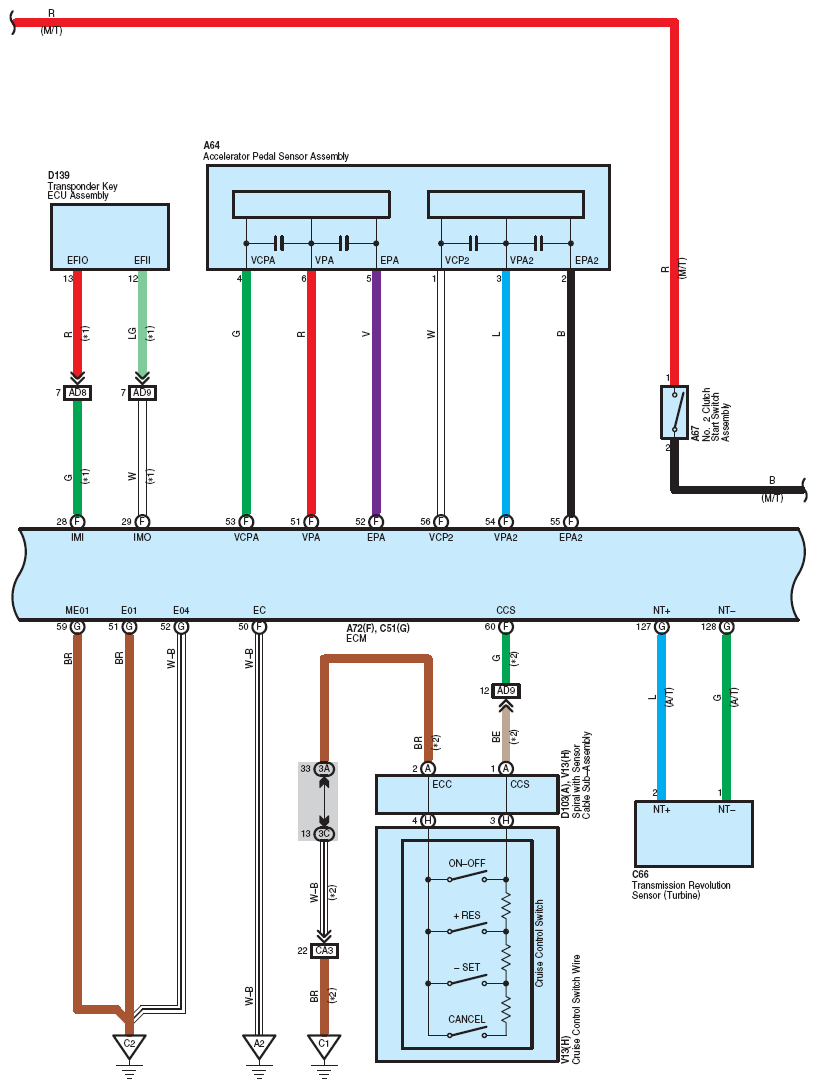

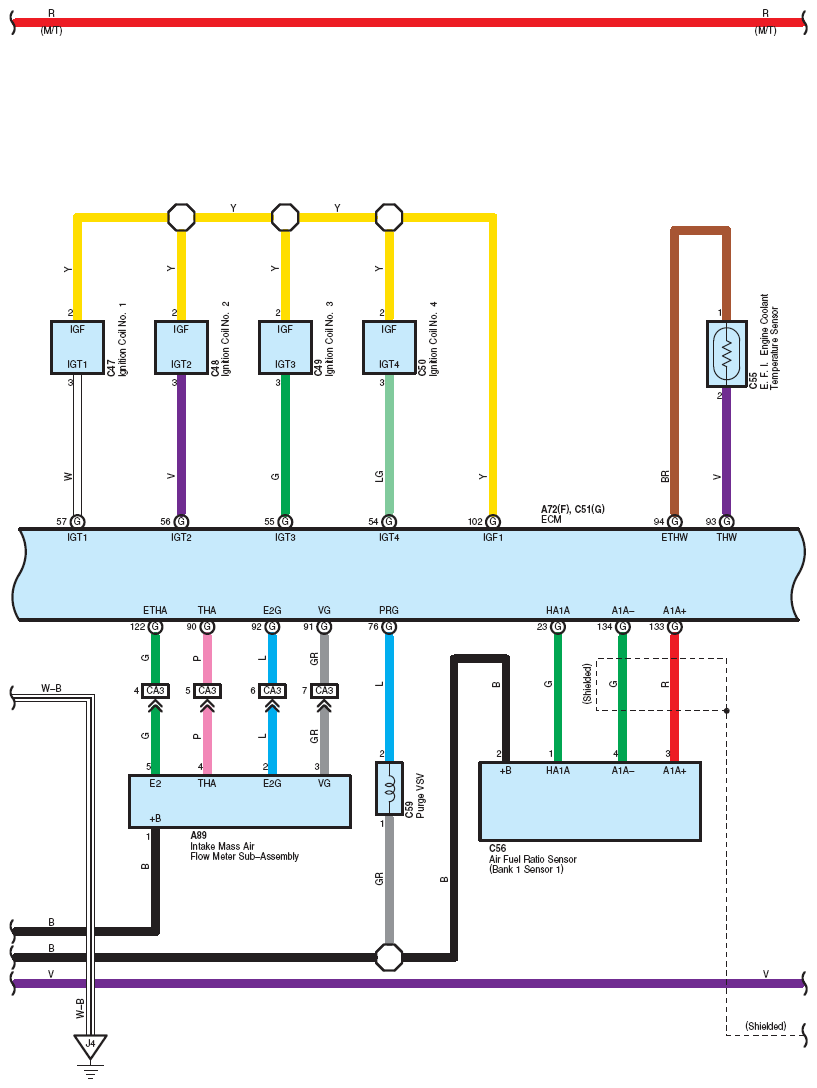

Fig 4: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (4 Of 12)

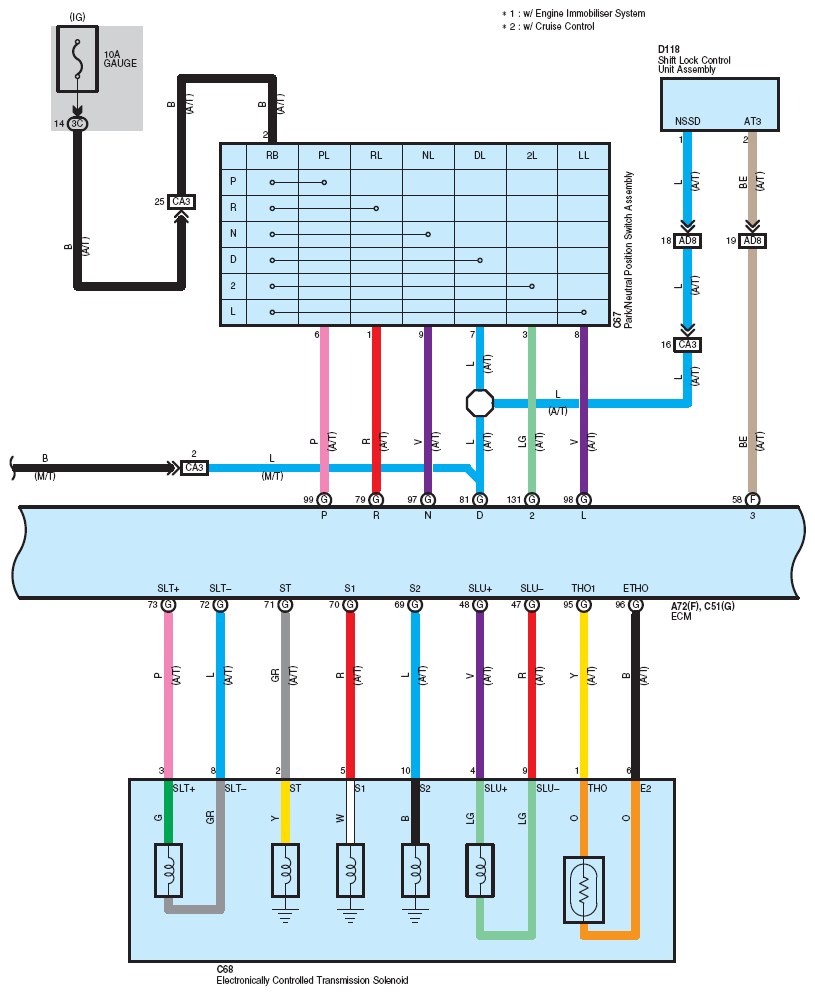

Fig 5: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (5 Of 12)

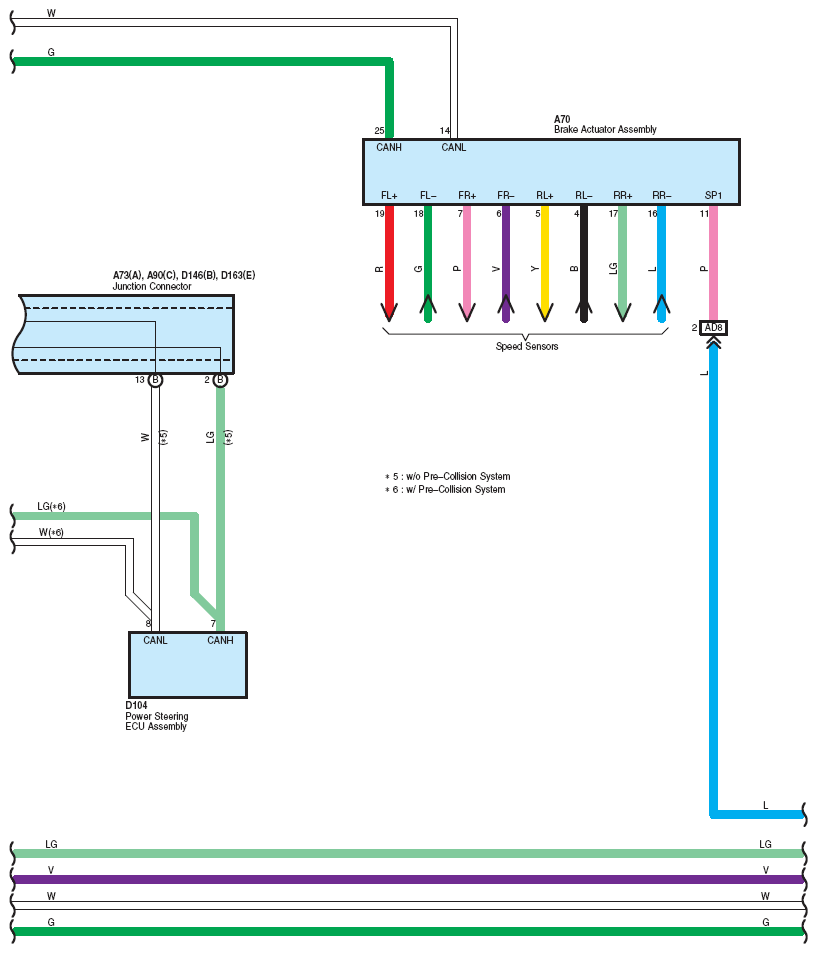

Fig 6: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (6 Of 12)

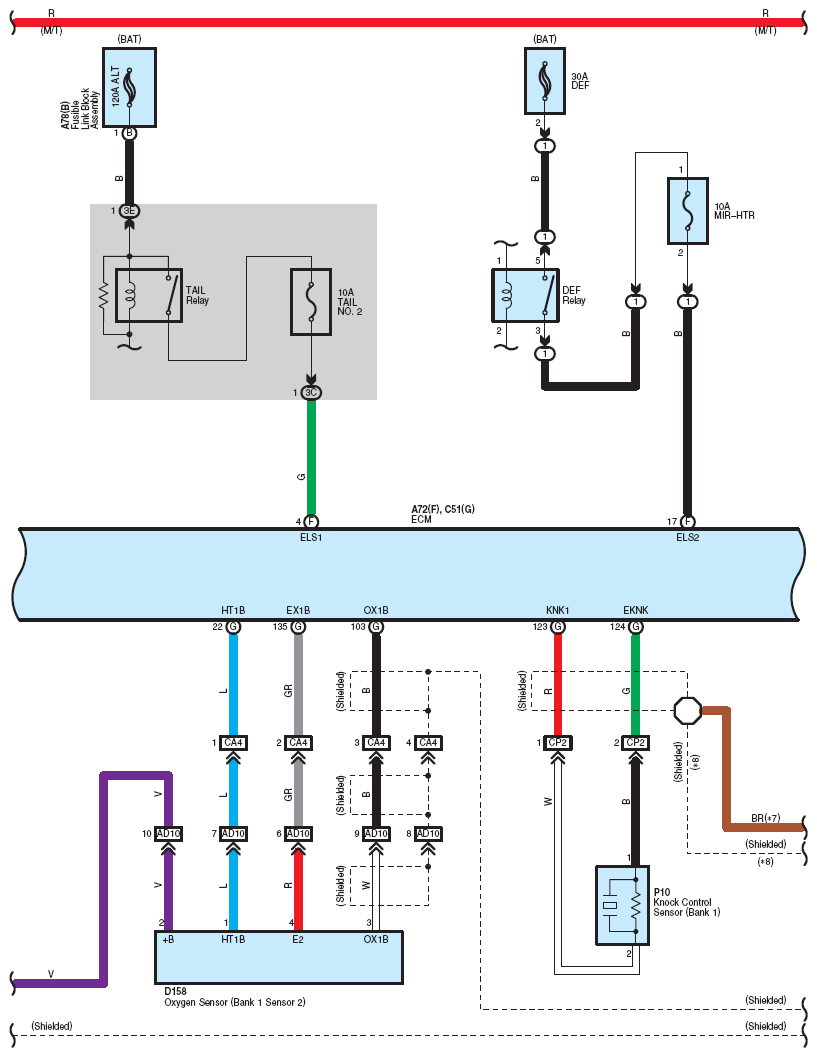

Fig 7: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (7 Of 12)

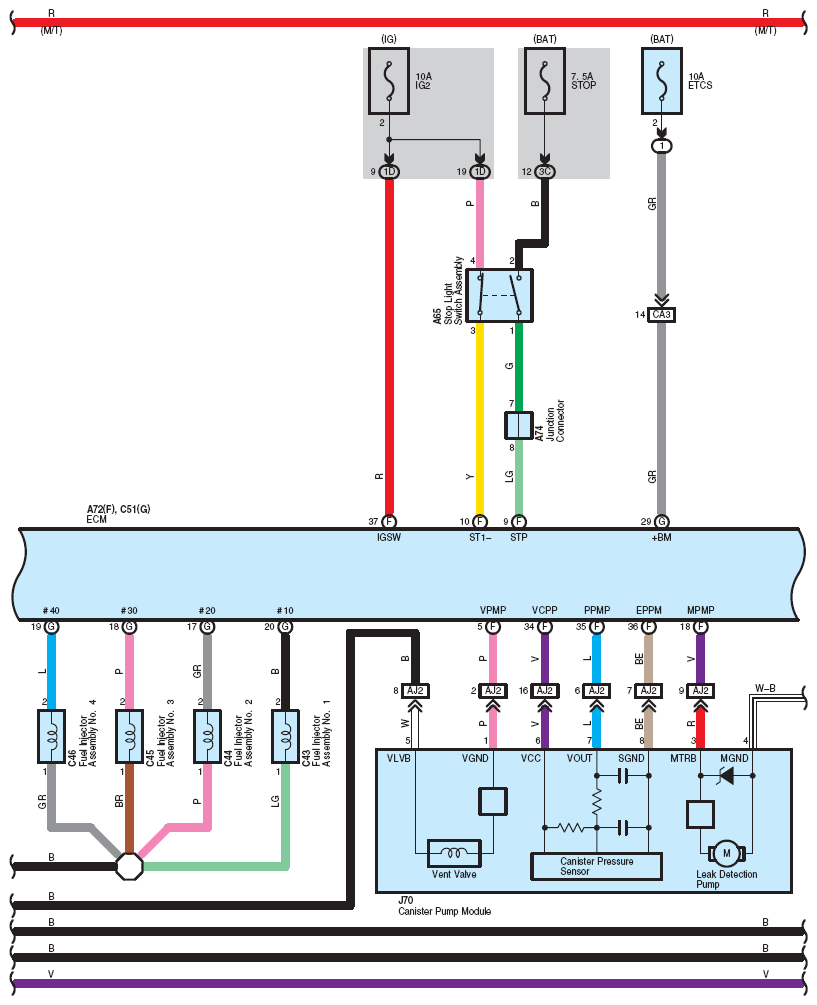

Fig 8: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (8 Of 12)
Fig 9: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (9 Of 12)
Fig 10: Cruise Control - Hatchback, Electronically Controlled Transmission And A/T Indicator - Hatchback, Engine Control - Hatchback (10 Of 12)
