Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT FENDER APRON UPPER SEAL RH

    Refer to PROCEDURE - Step 12 [08/2015 - 11/2017] , or refer to PROCEDURE - Step 14 [11/2017 - ]

  2. DRAIN POWER STEERING FLUID
  3. REMOVE POWER STEERING OIL PRESSURE SWITCH

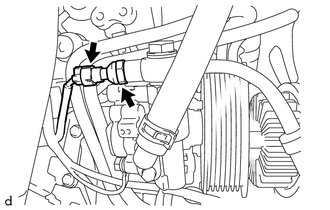

    1. Disconnect the connector from the power steering oil pressure switch.
      GTY604477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 19 mm deep socket wrench, remove the power steering oil pressure switch from the pressure feed tube assembly.
