Components [08/2015 - ]

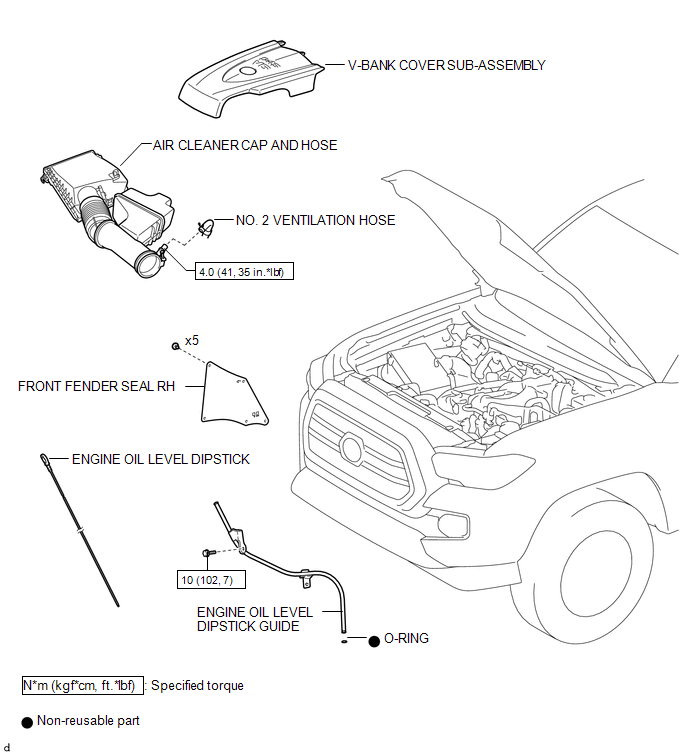

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications (1 Of 2)
GTY688558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

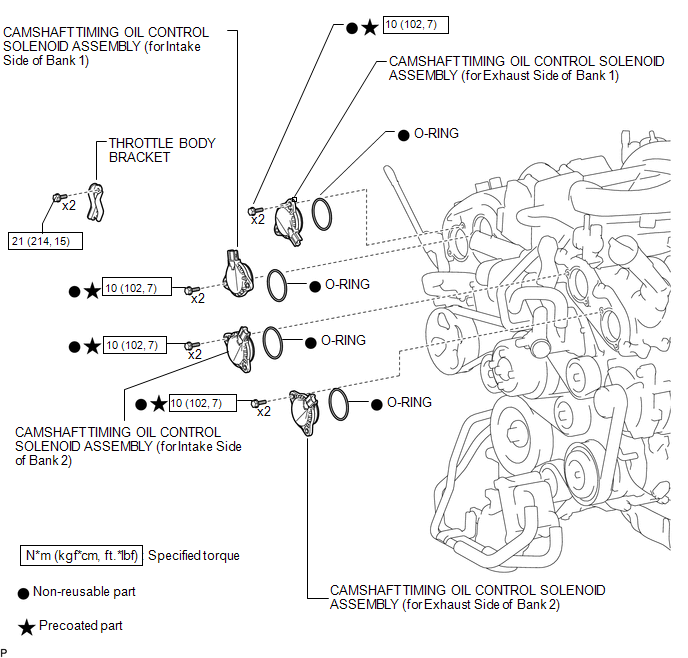

Fig 2: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications (2 Of 2)
GTY715966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
