Removal [08/2016 - ]: Procedure

REMOVE INSTRUMENT PANEL FINISH PANEL END LH
- for 2WD:
  Refer to PROCEDURE - Step 1
- for AWD:
  Refer to PROCEDURE - Step 1
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 7
REMOVE NO. 2 ENGINE UNDER COVER (for AWD)
Refer to PROCEDURE - Step 5
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD)
Refer to PROCEDURE - Step 5
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 4

REMOVE HEATED OXYGEN SENSOR (for Bank 2)

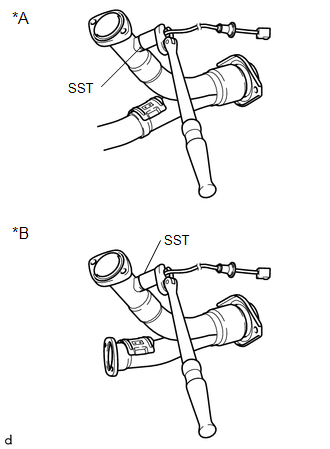

Using SST, remove the heated oxygen sensor (for bank 2) from the front exhaust pipe assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD
*B	for AWD

NOTE:

If a component has been dropped or subjected to a strong impact, replace heated oxygen sensor (for bank 2).

REMOVE HEATED OXYGEN SENSOR (for Bank 1)

for 2WD:

*A	for 2WD
*B	for AWD

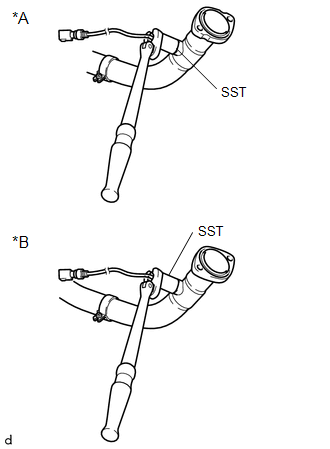

Using SST, remove the heated oxygen sensor (for bank 1) from the front exhaust pipe assembly.
NOTE:
If a component has been dropped or subjected to a strong impact, replace heated oxygen sensor (for bank 1).

for AWD:
1. Using SST, remove the heated oxygen sensor (for bank 1) from the No. 3 exhaust pipe sub-assembly.
  - SST: 09224-00012
  NOTE:
  If a component has been dropped or subjected to a strong impact, replace heated oxygen sensor (for bank 1).
