Removal [08/2016 - ]: Procedure

REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

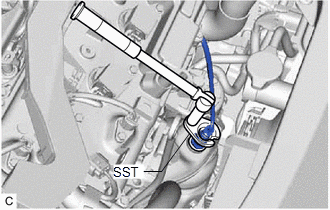

Using SST, remove the air fuel ratio sensor (for bank 2) from the exhaust manifold sub-assembly LH (TWC: front catalyst).

NOTE:

If the air fuel ratio sensor (for bank 2) has been struck or dropped, replace it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INSTRUMENT PANEL FINISH PANEL END LH
- for 2WD
  Refer to PROCEDURE - Step 1
- for AWD
  Refer to PROCEDURE - Step 1
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 4
REMOVE NO. 2 ENGINE UNDER COVER (for AWD)
Refer to PROCEDURE - Step 5
REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)
Refer to REMOVAL [12/2015 - ]
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD)
Refer to PROCEDURE - Step 7
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 8
REMOVE MANIFOLD STAY
Refer to PROCEDURE - Step 9
REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
Refer to PROCEDURE - Step 10
REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)
Refer to PROCEDURE - Step 11

REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

Using SST, remove the air fuel ratio sensor (for bank 1) from the exhaust manifold sub-assembly RH (TWC: front catalyst).

NOTE:

If the air fuel ratio sensor (for bank 1) has been struck or dropped, replace it.
