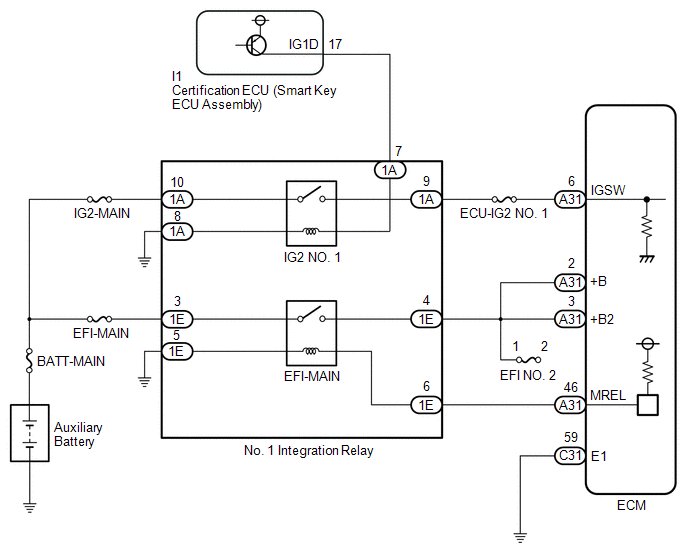

ECM Power Source Circuit [07/2020 - ]: Wiring Diagram

GTY982675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
