Removal [09/2016 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  4. REMOVE COWL WATER EXTRACT SHIELD LH

    Refer to PROCEDURE - Step 4

  5. REMOVE COWL WATER EXTRACT SHIELD RH

    Refer to PROCEDURE - Step 5

  6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [09/2016 - 07/2020] , or refer to PROCEDURE - Step 13 [07/2020 - ]

  8. REMOVE IGNITION COIL ASSEMBLY

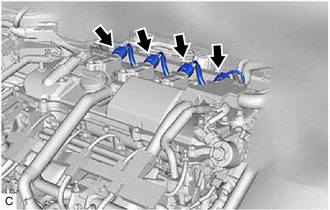

    1. Disconnect the 4 ignition coil assembly connectors.
      GTY696151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

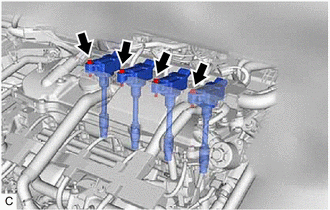

    2. Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      GTY696152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  9. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 9
