Fuel Tank Pressure Sensor
>>
Components [09/2016 - 12/2018]
Components [09/2016 - 12/2018]

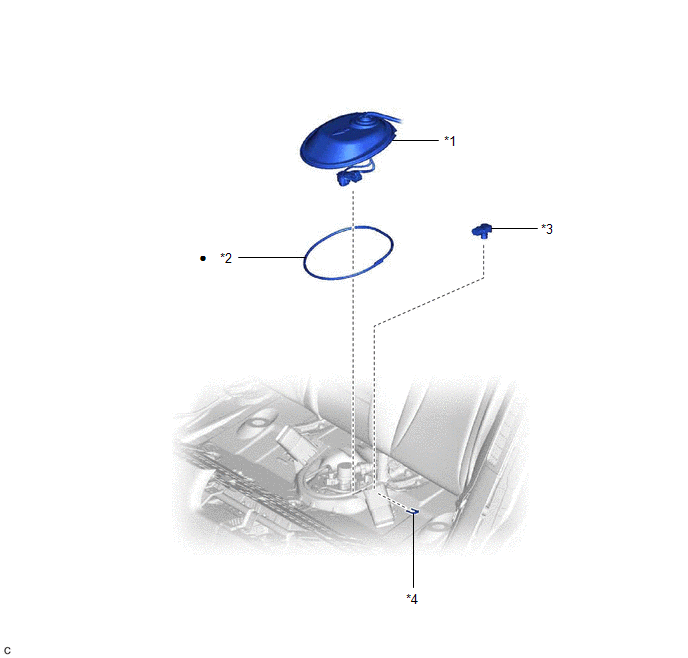

Fig 1: Fuel Tank Pressure Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR FLOOR SERVICE HOLE COVER
*2
BUTYL TAPE
*3
FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)
*4
TUBE JOINT CLIP
•
Non-reusable part
-
-
