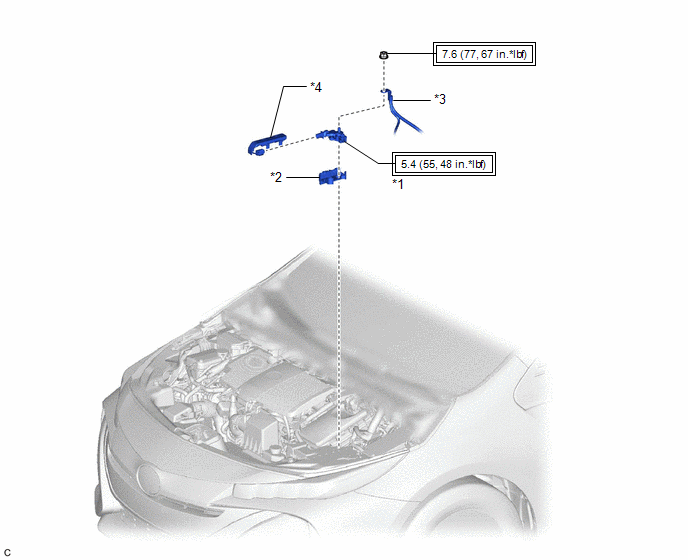

Components [09/2016 - 05/2019]
| Callout | Description | Callout | Description |
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | BATTERY CURRENT SENSOR HOLDER |
| *3 | ENGINE WIRE | *4 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
