Installation [09/2016 - ]: Procedure

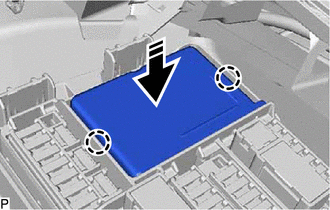

  1. INSTALL NO. 1 INTEGRATION RELAY
    1. Connect the 2 connectors.
    2. Engage the 2 claws to install the No. 1 integration relay as shown in the illustration.
      GTY703441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

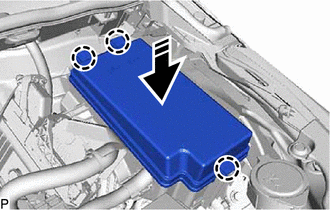

  2. INSTALL NO. 1 RELAY BLOCK COVER
    1. Engage the 3 claws to install the No. 1 relay block cover as shown in the illustration.
      GTY688848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2016 - 05/2019] , or refer to INITIALIZATION [05/2019 - 07/2020] , or refer to INITIALIZATION [07/2020 - ]
