System Diagrams

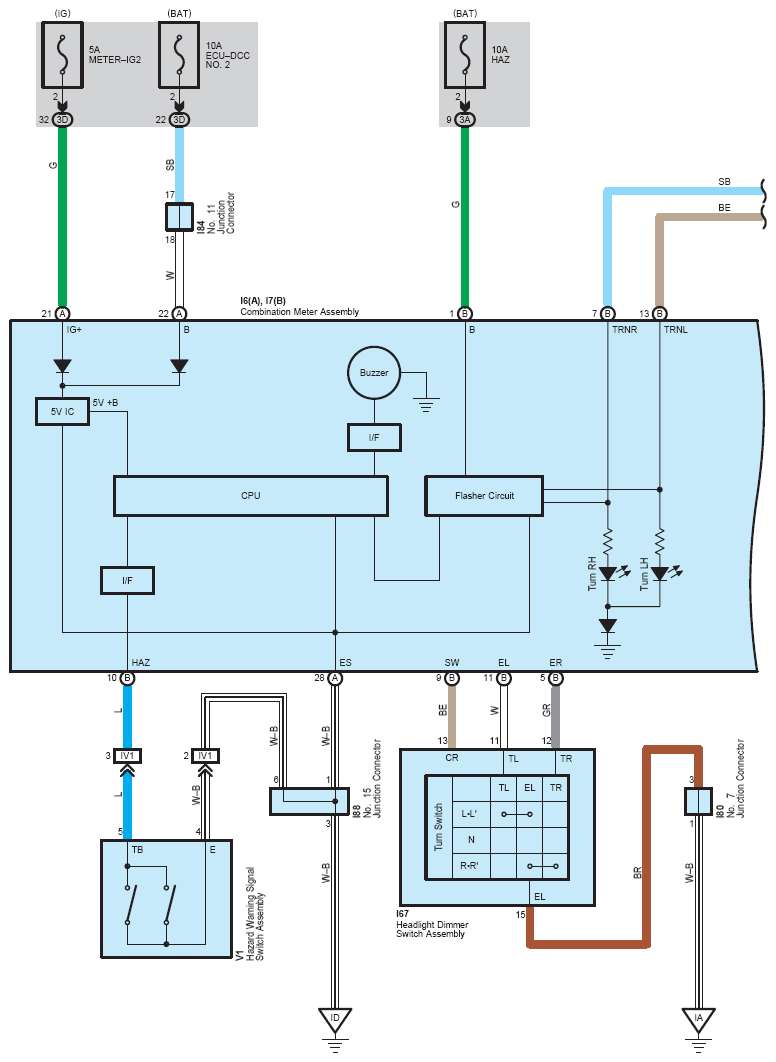

Fig 1: Turn Signal And Hazard Warning Light (1 Of 2)
G12210753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

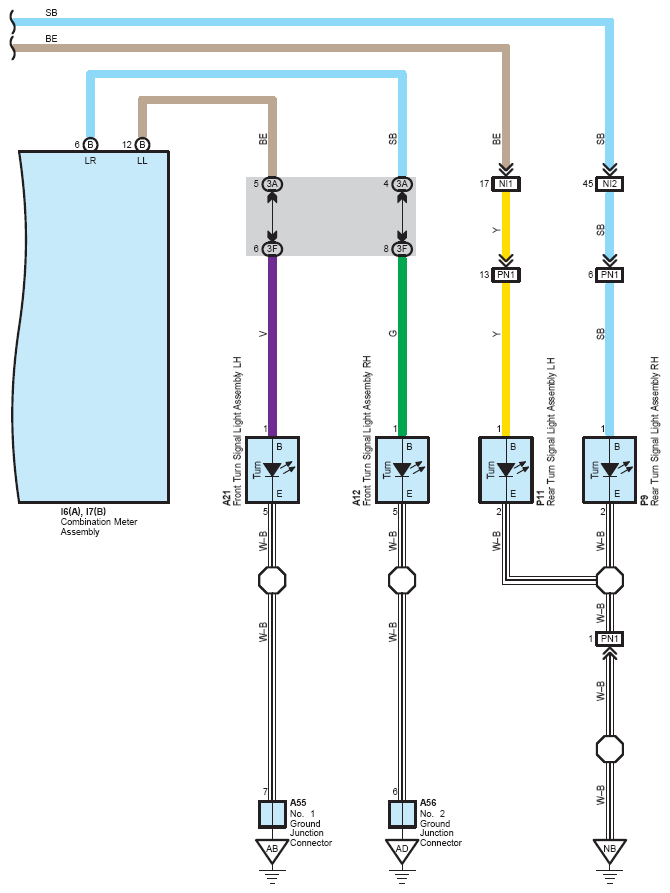

Fig 2: Turn Signal And Hazard Warning Light (2 Of 2)
G12210754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
