OEM Control Unit & Relay Locations
>>

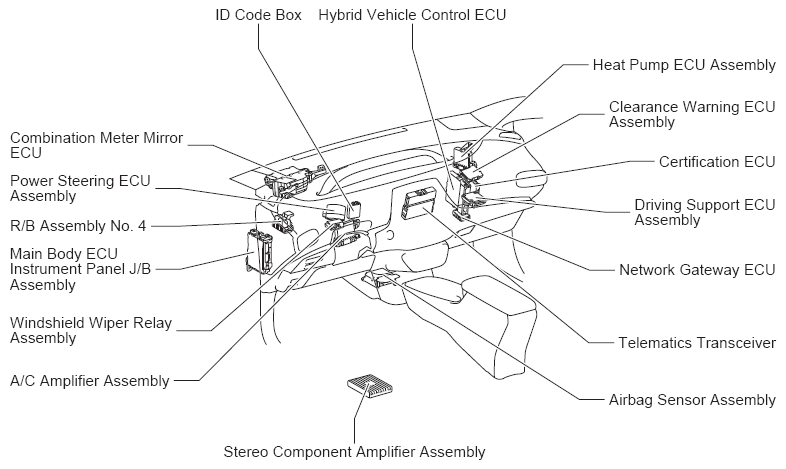

Instrument Panel
Instrument Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
