Inspection [09/2016 - ]: Procedure
- INSPECT CRUISE CONTROL MAIN SWITCH
- Measure the resistance according to the value(s) in the table below.

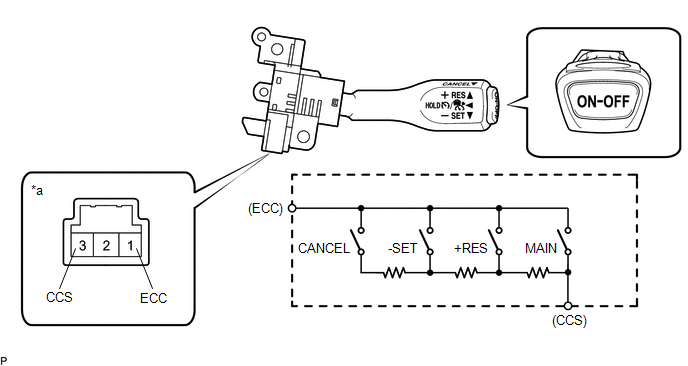

*a Component without harness connected
(Cruise Control Switch)- - Standard Resistance
Tester Connection Condition Specified Condition 1 (ECC) - 3 (CCS) Cruise control switch (ON-OFF button) released 1 MΩ or higher Cruise control switch (ON-OFF button) pushed Below 2.5 Ω +RES 236 to 244 Ω -SET 618 to 642 Ω CANCEL 1510 to 1570 Ω - If the result is not as specified, replace the cruise control main switch.
- Measure the resistance according to the value(s) in the table below.
