Cruise Control System - Service Information
>>
Cruise Control Main Switch
>>
Components [09/2016 - ]
Components [09/2016 - ]

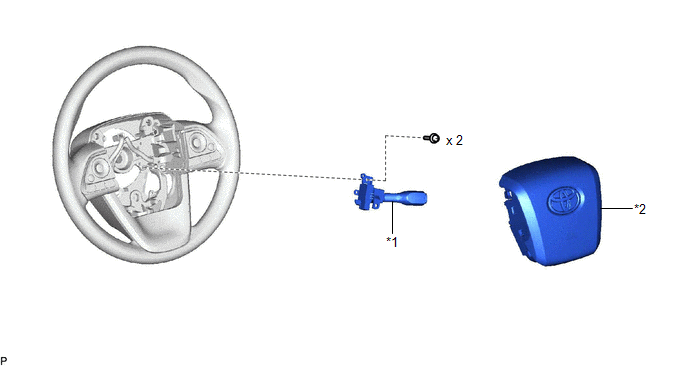

Fig 1: Cruise Control Main Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CRUISE CONTROL MAIN SWITCH
*2
HORN BUTTON ASSEMBLY
