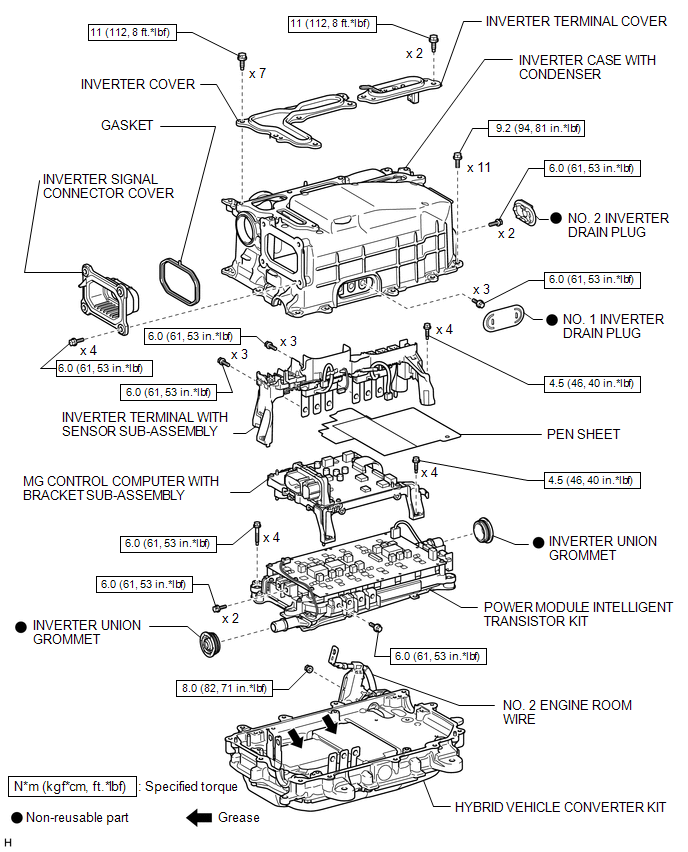

Home >> Toyota >> 2017 >> Prius C Two >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Battery Management Systems >> Hybrid Battery Control System (Service Information) >> Power Module Intelligent Transistor >> Components [11/2015 - ] >> Illustration
