Removal [11/2015 - 06/2017]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    (Refer to REMOVAL [11/2015 - 06/2017] )

  2. REMOVE PRE-COLLISION CITY BUZZER

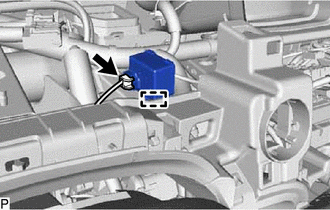

    1. Disconnect the connector.
      GTY561191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Disengage the clamp to remove the pre-collision city buzzer.
      NOTE:

      If the pre-collision city buzzer has been struck or dropped, replace it with a new one.
