Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
Symptom Tests
>>
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [06/2017 - ]
>>

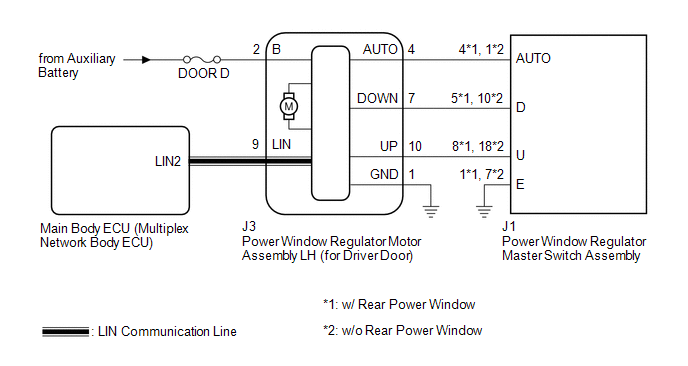

Wiring Diagram
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [06/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
