Transmission Shift Main Switch
>>
Components [06/2015 - ]
Components [06/2015 - ]

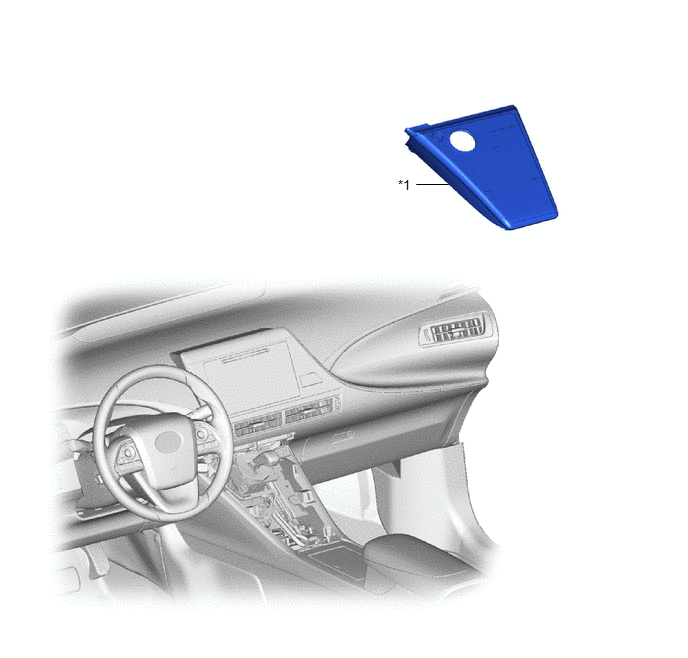

Fig 1: Transmission Shift Main Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
INTEGRATION CONTROL AND PANEL ASSEMBLY
- P POSITION SWITCH (TRANSMISSION SHIFT MAIN SWITCH)
-
-
