Installation [06/2015 - ]: Procedure

  1. INSTALL TRANSMISSION CONTROL ECU ASSEMBLY

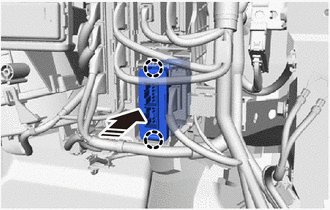

    1. Engage the 2 claws and install the transmission control ECU assembly to the ECU integration box RH.
      NOTE:

      Check that a locking sound is heard.

      GTY574435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the 2 connectors.
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 16 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 16 [01/2018 - ]

  3. INSTALL INSTRUMENT SIDE PANEL RH

    HINT:

    Perform the same procedure as for the LH side.

    Refer to PROCEDURE - Step 20 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 20 [01/2018 - ]

  4. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Perform the same procedure as for the LH side.

    Refer to PROCEDURE - Step 31 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 31 [01/2018 - ]

  5. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 18 [01/2018 - ]

  6. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 25 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 25 [01/2018 - ]

  7. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Perform the same procedure as for the LH side.

    Refer to PROCEDURE - Step 37 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 37 [01/2018 - ]

  9. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 39 [01/2018 - ]

  10. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Perform the same procedure as for the LH side.

    Refer to PROCEDURE - Step 40 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 40 [01/2018 - ]

  11. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 2 [11/2018 - ]

  12. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 3 [11/2018 - ]

  13. PERFORM INITIALIZATION

    Refer to INITIALIZATION [06/2015 - 11/2018] , or refer to INITIALIZATION [11/2018 - ]
