Components [06/2015 - ]

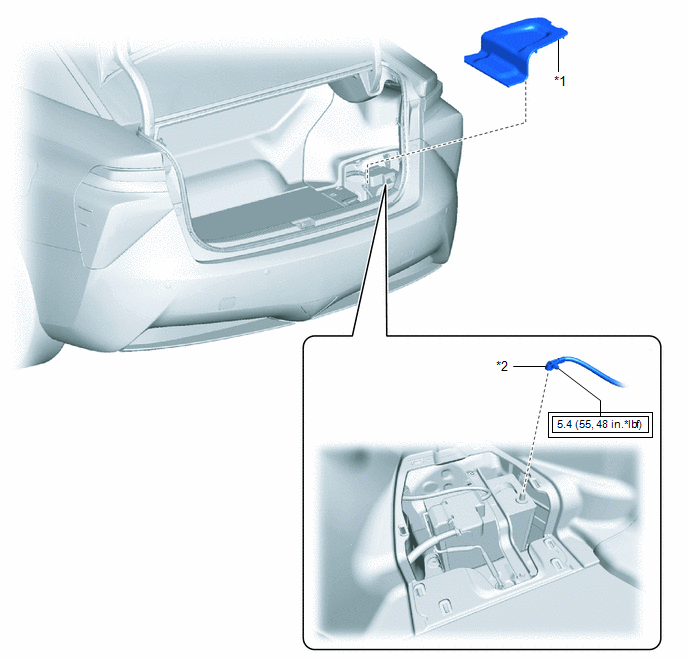

Fig 1: TCM Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE TRIM SERVICE HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

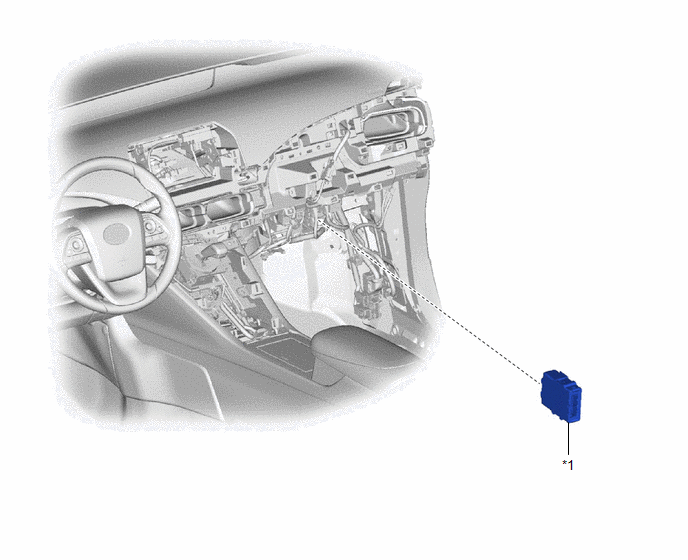

Fig 2: TCM Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT SIDE PANEL RH	*2	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
*3	NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY	*4	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*5	INTEGRATION CONTROL AND PANEL ASSEMBLY	*6	COWL SIDE TRIM BOARD RH
*7	GLOVE COMPARTMENT DOOR ASSEMBLY	*8	FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*9	FRONT DOOR SCUFF PLATE RH	-	-

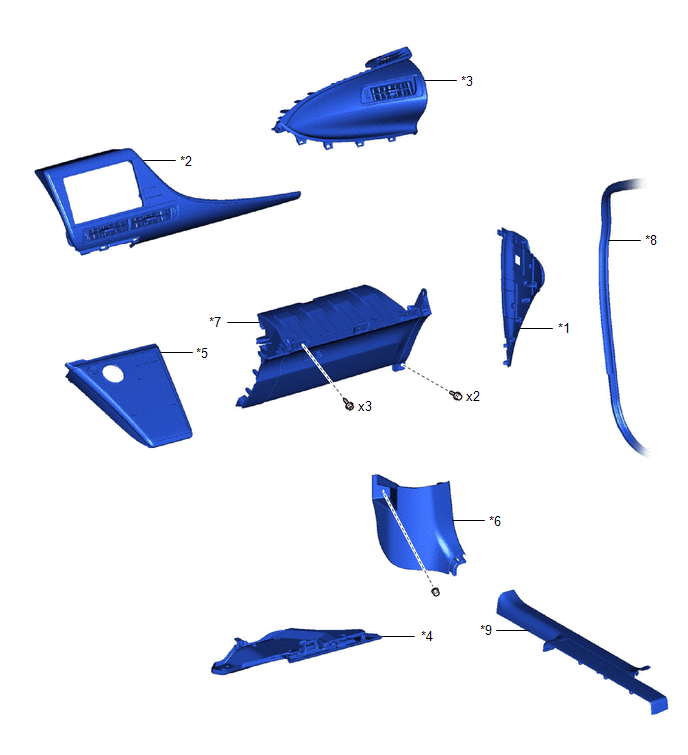

Fig 3: TCM Replacement Components (3 Of 3)

TRANSMISSION CONTROL ECU ASSEMBLY
